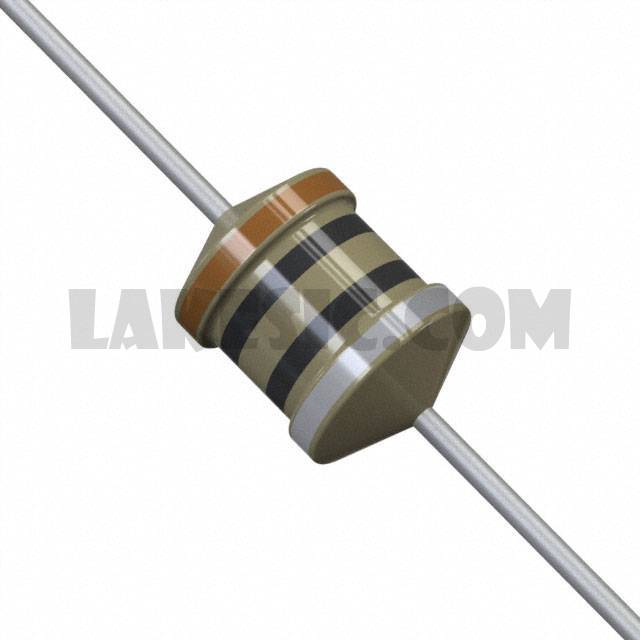

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144F2 Series
Standard Package	1500
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	10µH
Tolerance	±10%
Current Rating (Amps)	2.45A
Current - Saturation	2.85A
Shielding	Unshielded
DC Resistance (DCR)	120mOhm Max
Q @ Freq	40 @ 252kHz
Frequency - Self Resonant	22MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max)	-

B82144B2152K000	EPCOS (TDK), 1.5µH Unshielded Wirewound Inductor 4.1A 45mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B1105J000	EPCOS (TDK), 1mH Unshielded Wirewound Inductor 280mA 4.2Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2332K000	EPCOS (TDK), 3.3µH Unshielded Wirewound Inductor 3.5A 65mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2393J000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 1.75A 250mOhm Max Axial, LBC	View
B82144B2563J000	EPCOS (TDK), 56µH Unshielded Wirewound Inductor 1.6A 310mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 1.4A 220mOhm Max Axial, LBC	View
B82144A2104J000	EPCOS (TDK), 100µH Unshielded Wirewound Inductor 600mA 700mOhm Max Axial, LBC	View
B82144B2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Axial, LBC	View
B82144B2473J000	EPCOS (TDK), 47µH Unshielded Wirewound Inductor 1.7A 270mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2153K000	EPCOS (TDK), 15µH Unshielded Wirewound Inductor 2.3A 140mOhm Max Axial, LBC	View

B82144F2103K000

Part NumberB82144F2103K000
