Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144A Series
Standard Package	1500
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.2mH
Tolerance	±5%
Current Rating (Amps)	120mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	9Ohm Max
Q @ Freq	60 @ 252kHz
Frequency - Self Resonant	800kHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole

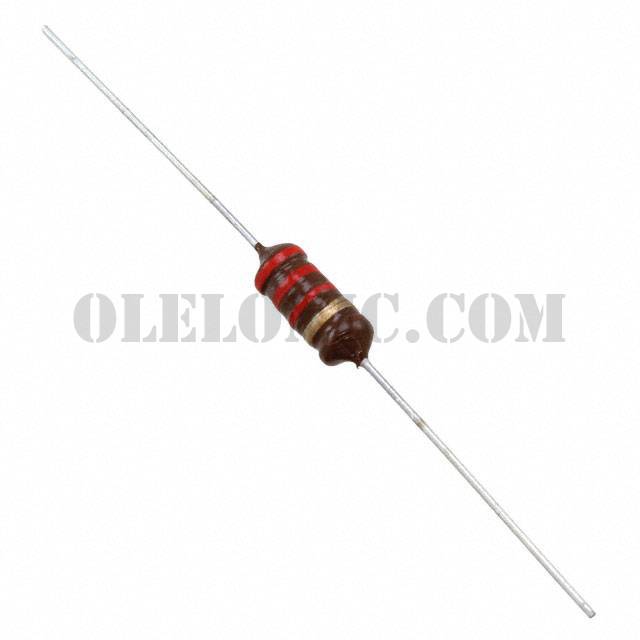

Package / Case	Axial
Supplier Device Package	-
Size / Dimension	0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max)	-

B82144A2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 1.6A 160mOhm Max Axial, LBC	View
B82144A2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 1.1A 350mOhm Max Axial, LBC	View
B82144B1335J000	EPCOS (TDK), 3.3mH Unshielded Wirewound Inductor 150mA 13.8Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2153K000	EPCOS (TDK), 15µH Unshielded Wirewound Inductor 2.3A 140mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2104J000	EPCOS (TDK), 100µH Unshielded Wirewound Inductor 600mA 700mOhm Max Axial, LBC	View
B82144B2393J000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 1.75A 250mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2222K000	EPCOS (TDK), 2.2µH Unshielded Wirewound Inductor 3.65A 55mOhm Max Axial, LBC	View
B82144B2124J000	EPCOS (TDK), 120µH Unshielded Wirewound Inductor 1.1A 600mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2684J000	EPCOS (TDK), 680µH Unshielded Wirewound Inductor 240mA 2.8Ohm Max Axial, LBC	View
B82144A2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 1.6A 160mOhm Max Axial, LBC	View
B82144B2683J000	EPCOS (TDK), 68µH Unshielded Wirewound Inductor 1.5A 350mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2473J000	EPCOS (TDK), 47µH Unshielded Wirewound Inductor 1.7A 270mOhm Max Radial, Vertical Cylinder, LBC	View

B82144A2225J000

Part NumberB82144A2225J000
