Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B2 Series
Standard Package	1000
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.7µH
Tolerance	±10%
Current Rating (Amps)	3.55A
Current - Saturation	5.4A
Shielding	Unshielded
DC Resistance (DCR)	60mOhm Max
Q @ Freq	60 @ 2.52MHz
Frequency - Self Resonant	120MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)

B82144B2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2273K000	EPCOS (TDK), 27µH Unshielded Wirewound Inductor 2A 200mOhm Max Axial, LBC	View
B82144B2334J000	EPCOS (TDK), 330µH Unshielded Wirewound Inductor 700mA 1.53Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2123K000	EPCOS (TDK), 12µH Unshielded Wirewound Inductor 2.4A 130mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2563J000	EPCOS (TDK), 56µH Unshielded Wirewound Inductor 1.6A 310mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2474J000	EPCOS (TDK), 470µH Unshielded Wirewound Inductor 600mA 2.02Ohm Max Radial, Vertical Cylinder, LBC	View
B82144A2472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 1.6A 160mOhm Max Axial, LBC	View
B82144F2394J000	EPCOS (TDK), 390µH Unshielded Wirewound Inductor 650mA 1.72Ohm Max Axial, LBC	View
B82144B1335J000	EPCOS (TDK), 3.3mH Unshielded Wirewound Inductor 150mA 13.8Ohm Max Radial, Vertical Cylinder, LBC	View
B82144F2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Axial, LBC	View
B82144B2152K000	EPCOS (TDK), 1.5µH Unshielded Wirewound Inductor 4.1A 45mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Axial, LBC	View

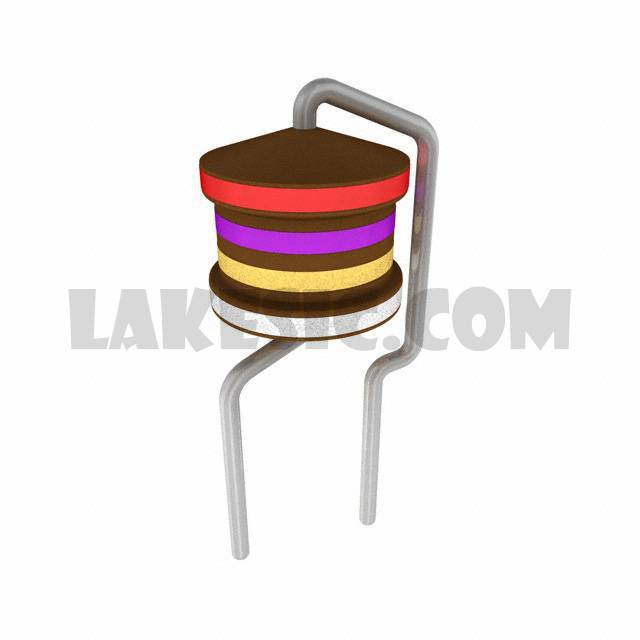

B82144B2272K000

Part NumberB82144B2272K000
