Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B2 Series
Standard Package	1000
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	4.7µH
Tolerance	±10%
Current Rating (Amps)	3.05A
Current - Saturation	4A
Shielding	Unshielded
DC Resistance (DCR)	80mOhm Max
Q @ Freq	50 @ 2.52MHz
Frequency - Self Resonant	70MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)

B82144B2183K000	EPCOS (TDK), 18µH Unshielded Wirewound Inductor 2.2A 155mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2123K000	EPCOS (TDK), 12µH Unshielded Wirewound Inductor 2.4A 130mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2106J000	EPCOS (TDK), 10mH Unshielded Wirewound Inductor 60mA 42Ohm Max Axial, LBC	View
B82144A2222K000	EPCOS (TDK), 2.2µH Unshielded Wirewound Inductor 1.9A 110mOhm Max Axial, LBC	View
B82144B2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2153K000	EPCOS (TDK), 15µH Unshielded Wirewound Inductor 2.3A 140mOhm Max Axial, LBC	View
B82144B2393J000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 1.75A 250mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2474J000	EPCOS (TDK), 470µH Unshielded Wirewound Inductor 280mA 2.5Ohm Max Axial, LBC	View
B82144B2222K000	EPCOS (TDK), 2.2µH Unshielded Wirewound Inductor 3.65A 55mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2683J000	EPCOS (TDK), 68µH Unshielded Wirewound Inductor 1.5A 350mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2182K000	EPCOS (TDK), 1.8µH Unshielded Wirewound Inductor 3.75A 50mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 900mA 1.01Ohm Max Radial, Vertical Cylinder, LBC	View

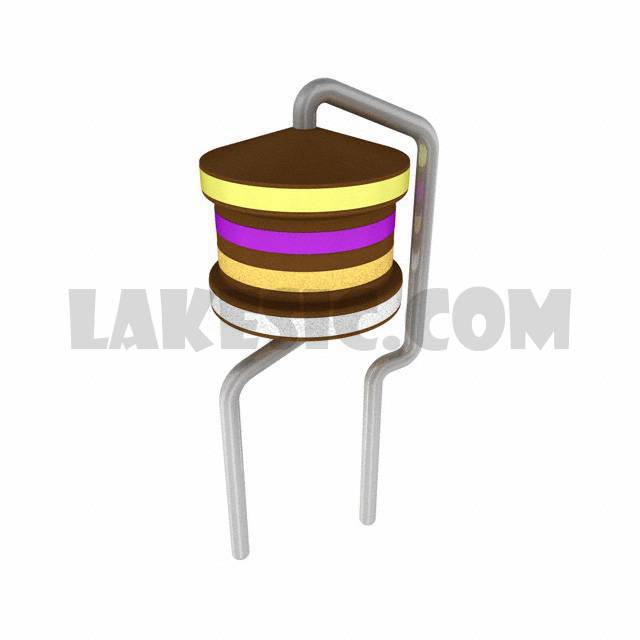

B82144B2472K000

Part NumberB82144B2472K000
