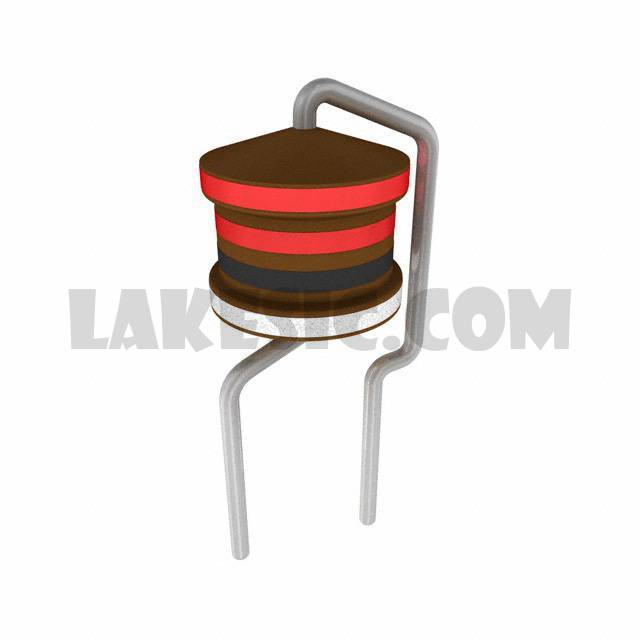

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B2 Series
Standard Package	1000
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22µH
Tolerance	±10%
Current Rating (Amps)	2.1A
Current - Saturation	2A
Shielding	Unshielded
DC Resistance (DCR)	175mOhm Max
Q @ Freq	50 @ 252kHz
Frequency - Self Resonant	10MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)

B82144B2123K000	EPCOS (TDK), 12µH Unshielded Wirewound Inductor 2.4A 130mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2393J000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 1.75A 250mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2333J000	EPCOS (TDK), 33µH Unshielded Wirewound Inductor 1.9A 220mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2273K000	EPCOS (TDK), 27µH Unshielded Wirewound Inductor 2A 200mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B1335J000	EPCOS (TDK), 3.3mH Unshielded Wirewound Inductor 150mA 13.8Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 2.45A 120mOhm Max Radial, Vertical Cylinder, LBC	View
B82144A2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 400mA 1.6Ohm Max Axial, LBC	View
B82144F2152K000	EPCOS (TDK), 1.5µH Unshielded Wirewound Inductor 4.1A 45mOhm Max Axial, LBC	View
B82144F2394J000	EPCOS (TDK), 390µH Unshielded Wirewound Inductor 650mA 1.72Ohm Max Axial, LBC	View
B82144A2106J000	EPCOS (TDK), 10mH Unshielded Wirewound Inductor 60mA 42Ohm Max Axial, LBC	View
B82144B2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2274J000	EPCOS (TDK), 270µH Unshielded Wirewound Inductor 800mA 1.2Ohm Max Radial, Vertical Cylinder, LBC	View

B82144B2223K000

Part NumberB82144B2223K000
