B82722A2302N001
B82722A2302N001

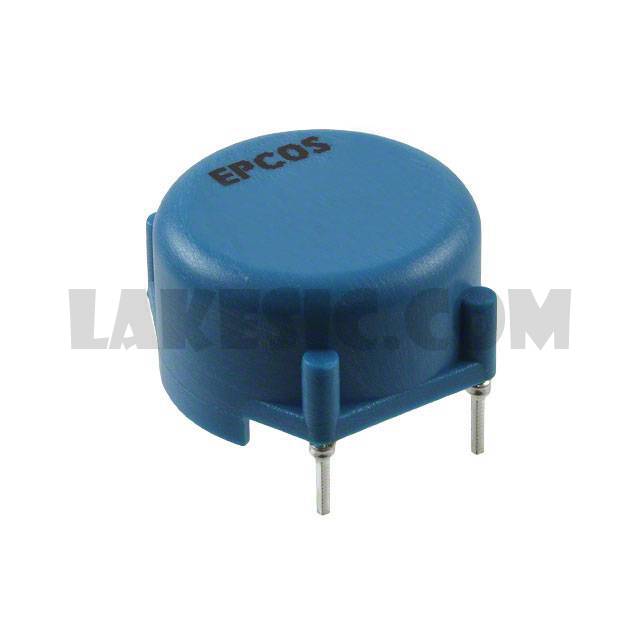

Part Number B82722A2302N001 Description CMC 1.2MH 3A 2LN TH Package / Case Horizontal, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 1.2mH @ 10kHz 2 Line Common Mode Choke Through Hole 3A DCR 56mOhm (Typ)
To learn about the specification of B82722A2302N001, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82722A2302N001 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82722A2302N001.
We are offering B82722A2302N001 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82722A2302N001 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet B82722A,J Series Datasheet Standard Package 600 Manufacturer EPCOS (TDK) Series B82722 Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 1.2mH @ 10kHz Current Rating (Max) 3A DC Resistance (DCR) (Max) 56mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals ENEC, UR, VDE Features - Mounting Type Through Hole Size / Dimension 0.894" L x 0.878" W (22.70mm x 22.30mm) Height (Max) 0.524" (13.30mm) Package / Case Horizontal, 4 PC Pin
