B82725S2103N003
B82725S2103N003

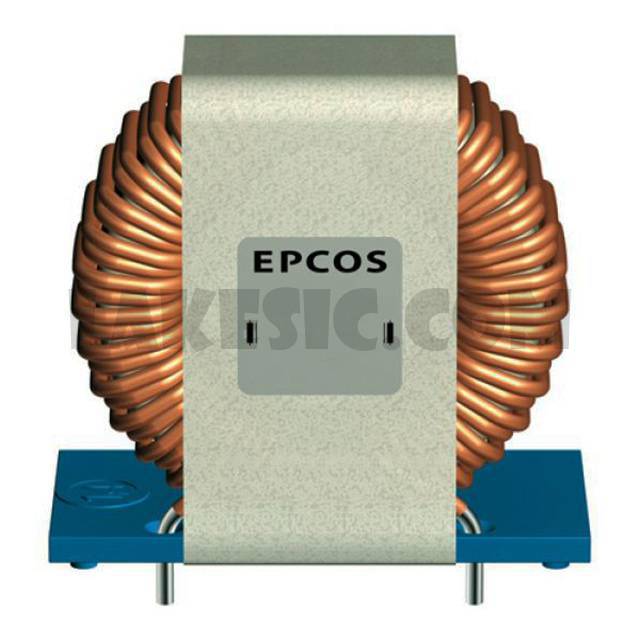

Part Number B82725S2103N003 Description CMC 2.8MH 10A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 12.5mOhm (Typ)
To learn about the specification of B82725S2103N003, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82725S2103N003 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82725S2103N003.
We are offering B82725S2103N003 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82725S2103N003 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet B82725S2 Series Standard Package 80 Manufacturer EPCOS (TDK) Series B82725 Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 2.8mH @ 10kHz Current Rating (Max) 10A DC Resistance (DCR) (Max) 12.5mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.591" L x 0.846" W (40.40mm x 21.50mm) Height (Max) 1.457" (37.00mm) Package / Case Vertical, 4 PC Pin
B82725S2103N003 - Related ProductsMore >>
B82725J2103N022 EPCOS (TDK), 1.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 13mOhm (Typ), B82725
View
B82725A2123N001 EPCOS (TDK), 1mH @ 100kHz 2 Line Common Mode Choke Through Hole 12A DCR 11mOhm (Typ), B82725
View
B82725S2103N003 EPCOS (TDK), 2.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 12.5mOhm (Typ), B82725
View
B82725A2802N001 EPCOS (TDK), 2.7mH @ 10kHz 2 Line Common Mode Choke Through Hole 8A DCR 22mOhm (Typ), B82725
View
B82725A2123N040 EPCOS (TDK), 3.3mH @ 10kHz 2 Line Common Mode Choke Through Hole 12A DCR 12mOhm (Typ), B82725
View
B82725A2103N001 EPCOS (TDK), 1.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 14mOhm (Typ), B82725
View
B82725J2402N020 EPCOS (TDK), 6.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 4A DCR 75mOhm (Typ), B82725
View
B82725S2602N041 EPCOS (TDK), 7.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 24mOhm (Typ), B82725
View
B82725J2602N020 EPCOS (TDK), 3.9mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 30mOhm (Typ), B82725
View
B82725A2202N001 EPCOS (TDK), 18mH @ 10kHz 2 Line Common Mode Choke Through Hole 2A DCR 330mOhm (Typ), B82725
View
B82725S2602N002 EPCOS (TDK), 3.9mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 24mOhm (Typ), B82725
View
B82725S2103N004 EPCOS (TDK), 3.3mH @ 10kHz 2 Line Common Mode Choke Through Hole 10A DCR 13.5mOhm (Typ), B82725
View
