B82725S2602N002
B82725S2602N002

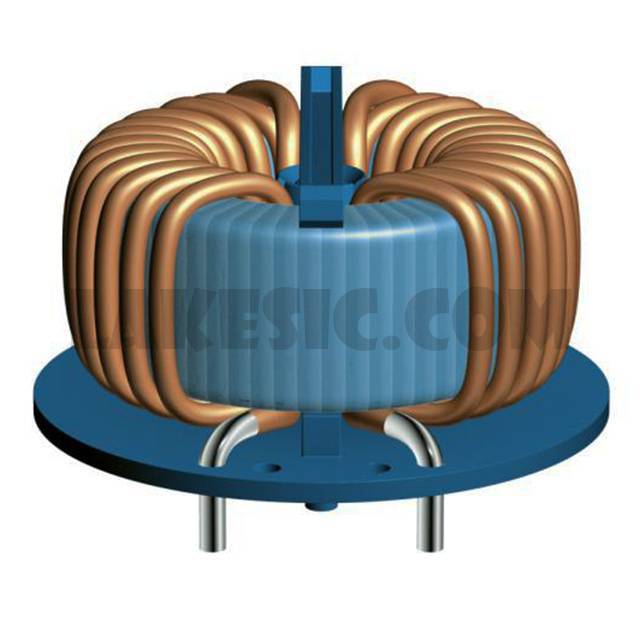

Part Number B82725S2602N002 Description CMC 3.9MH 6A 2LN TH Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 3.9mH @ 10kHz 2 Line Common Mode Choke Through Hole 6A DCR 24mOhm (Typ)
To learn about the specification of B82725S2602N002, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82725S2602N002 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82725S2602N002.
We are offering B82725S2602N002 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82725S2602N002 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet B82725S2 Series Standard Package 80 Manufacturer EPCOS (TDK) Series B82725 Packaging Tray Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 3.9mH @ 10kHz Current Rating (Max) 6A DC Resistance (DCR) (Max) 24mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.591" L x 0.846" W (40.40mm x 21.50mm) Height (Max) 1.457" (37.00mm) Package / Case Vertical, 4 PC Pin
