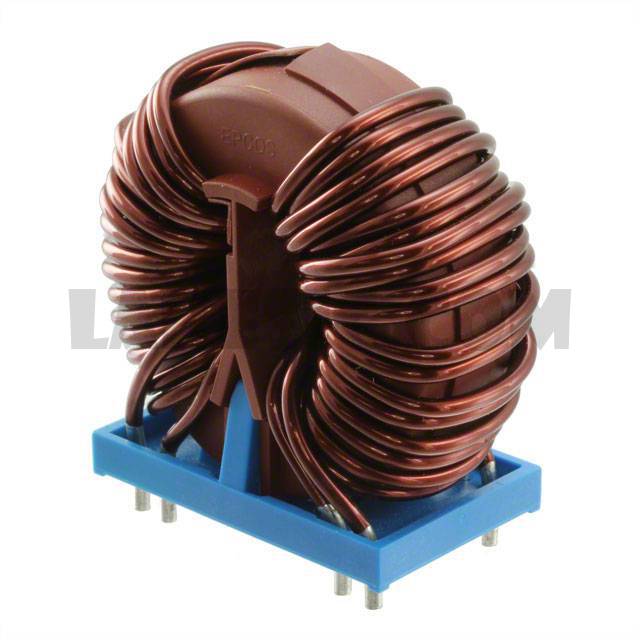

B82727E6503A040

B82727E6503A040

Part NumberB82727E6503A040

ManufacturerEPCOS (TDK)

DescriptionCMC 570UH 50A 2LN TH

DatasheetB8272xE6 Series

Package / CaseVertical, 8 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description570µH @ 100kHz 2 Line Common Mode Choke Through Hole 50A DCR 1mOhm (Typ)

To learn about the specification of B82727E6503A040, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82727E6503A040 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82727E6503A040.
We are offering B82727E6503A040 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B82727E6503A040 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	B8272xE6 Series
Standard Package	32
Manufacturer	EPCOS (TDK)
Series	B82727
Packaging	Tray
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Inductance @ Frequency	570µH @ 100kHz
Current Rating (Max)	50A
DC Resistance (DCR) (Max)	1mOhm (Typ)
Voltage Rating - DC	1000V (1kV)
Voltage Rating - AC	600V
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	UR
Features	-
Mounting Type	Through Hole
Size / Dimension	2.559" L x 1.378" W (65.00mm x 35.00mm)
Height (Max)	2.402" (61.00mm)
Package / Case	Vertical, 8 PC Pin
