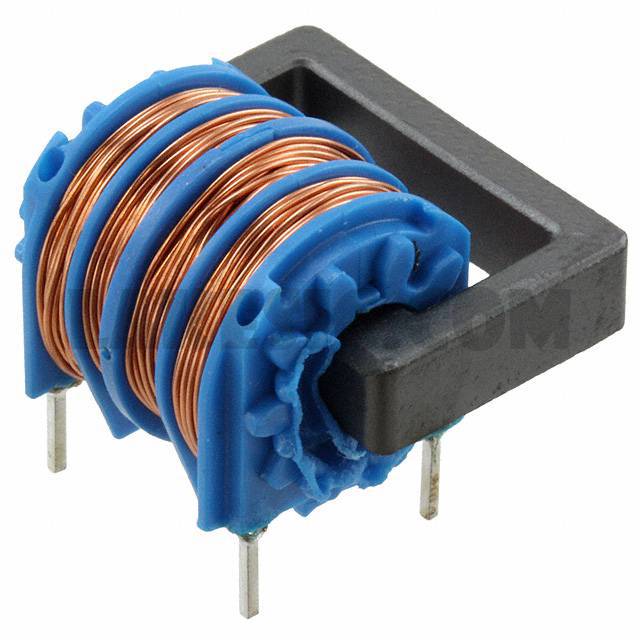

B82731H2501A030


B82731H2501A030

Part NumberB82731H2501A030

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82731H2501A030 - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package800
ManufacturerEPCOS (TDK)
SeriesB82731
PackagingTray
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency47mH @ 10kHz
Current Rating (Max)500mA
DC Resistance (DCR) (Max)2Ohm (Typ)
Voltage Rating - DC-
Voltage Rating - AC250V
Operating Temperature-40°C ~ 125°C
Ratings-
ApprovalsENEC, UR, VDE
Features-
Mounting TypeThrough Hole
Size / Dimension0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max)0.610" (15.50mm)
Package / CaseHorizontal, 4 PC Pin

B82731H2501A030 - Related Products

More >>
B82731M2701A030 EPCOS (TDK), 27mH @ 10kHz 2 Line Common Mode Choke Through Hole 700mA DCR 1Ohm (Typ), B82731 View
B82731M2132A030 EPCOS (TDK), 6.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.3A DCR 280mOhm (Typ), B82731 View
B82731M2401A033 EPCOS (TDK), 68mH @ 10kHz 2 Line Common Mode Choke Through Hole 400mA DCR 3Ohm (Typ), B82731 View
B82731M2112A030 EPCOS (TDK), 10mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.1A DCR 400mOhm (Typ), B82731 View
B82731T2301A020 EPCOS (TDK), 100mH @ 10kHz 2 Line Common Mode Choke Through Hole 300mA DCR 6.6Ohm (Typ), B82731 View
B82731H2701A030 EPCOS (TDK), 27mH @ 10kHz 2 Line Common Mode Choke Through Hole 700mA DCR 1Ohm (Typ), B82731 View
B82731M2351A030 EPCOS (TDK), 100mH @ 10kHz 2 Line Common Mode Choke Through Hole 350mA DCR 4.5Ohm (Typ), B82731 View
B82731H2351A030 EPCOS (TDK), 100mH @ 10kHz 2 Line Common Mode Choke Through Hole 350mA DCR 4.5Ohm (Typ), B82731 View
B82731T2132A020 EPCOS (TDK), 6.8mH @ 10kHz 2 Line Common Mode Choke Through Hole 1.3A DCR 370mOhm (Typ), B82731 View
B82731M2901A030 EPCOS (TDK), 15mH @ 10kHz 2 Line Common Mode Choke Through Hole 900mA DCR 600mOhm (Typ), B82731 View
B82731M2501A030 EPCOS (TDK), 47mH @ 10kHz 2 Line Common Mode Choke Through Hole 500mA DCR 2Ohm (Typ), B82731 View
B82731M2601A030 EPCOS (TDK), 39mH @ 10kHz 2 Line Common Mode Choke Through Hole 600mA DCR 1.5Ohm (Typ), B82731 View
