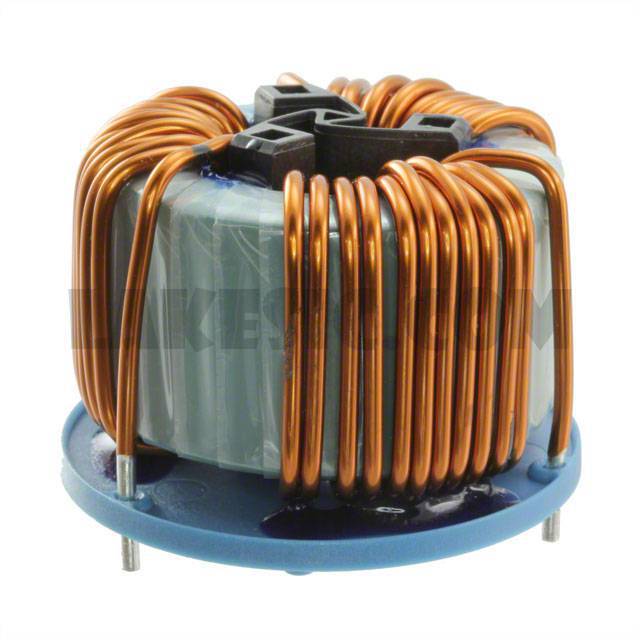

B82746S6702A040

B82746S6702A040

Part NumberB82746S6702A040

ManufacturerEPCOS (TDK)

DescriptionCMC 6.2MH 8A 3LN TH

DatasheetB82746S Series

Package / CaseVertical, 6 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description6.2mH @ 10kHz 3 Line Common Mode Choke Through Hole 8A DCR 18mOhm (Typ)

To learn about the specification of B82746S6702A040, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82746S6702A040 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82746S6702A040.
We are offering B82746S6702A040 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B82746S6702A040 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	B82746S Series
Standard Package	28
Manufacturer	EPCOS (TDK)
Series	B82746
Packaging	Tray
Part Status	Active
Filter Type	Power Line
Number of Lines	3
Inductance @ Frequency	6.2mH @ 10kHz
Current Rating (Max)	8A
DC Resistance (DCR) (Max)	18mOhm (Typ)
Voltage Rating - DC	-
Voltage Rating - AC	440/250V
Operating Temperature	-40°C ~ 125°C
Ratings	-
Approvals	UR
Features	-
Mounting Type	Through Hole
Size / Dimension	2.047" Dia (52.00mm)
Height (Max)	1.535" (39.00mm)
Package / Case	Vertical, 6 PC Pin
