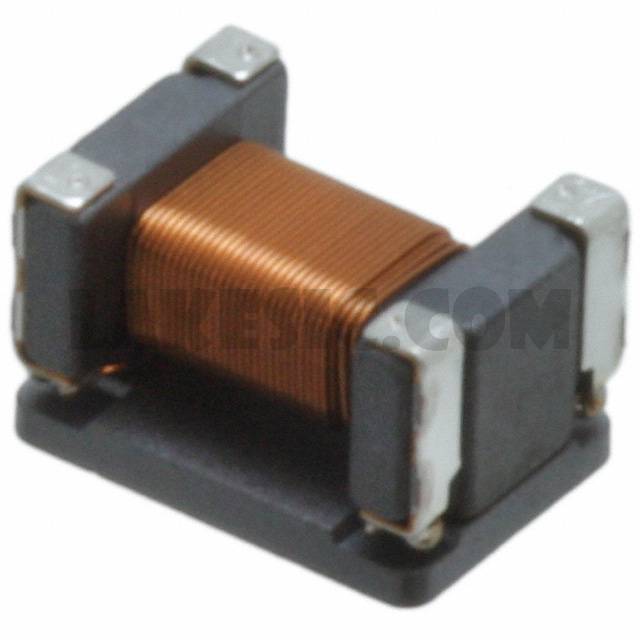

B82787C0513H002

B82787C0513H002

Part NumberB82787C0513H002

ManufacturerEPCOS (TDK)

DescriptionCMC 51UH 200MA 2LN SMD AEC-Q200

DatasheetACT45B-zzz-2P-TL003, B82787C0zzzH002

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description51µH @ 100kHz 2 Line Common Mode Choke Surface Mount 2.8 kOhms @ 10MHz 200mA DCR 1Ohm

To learn about the specification of B82787C0513H002, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82787C0513H002 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82787C0513H002.
We are offering B82787C0513H002 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B82787C0513H002 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	ACT45B-zzz-2P-TL003, B82787C0zzzH002
Standard Package	2500
Manufacturer	EPCOS (TDK)
Series	B82787
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	Signal Line
Number of Lines	2
Impedance @ Frequency	2.8 kOhms @ 10MHz
Inductance @ Frequency	51µH @ 100kHz
Current Rating (Max)	200mA
DC Resistance (DCR) (Max)	1Ohm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 150°C
Ratings	AEC-Q200
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height (Max)	0.118" (3.00mm)
Package / Case	Horizontal, 4 PC Pad
