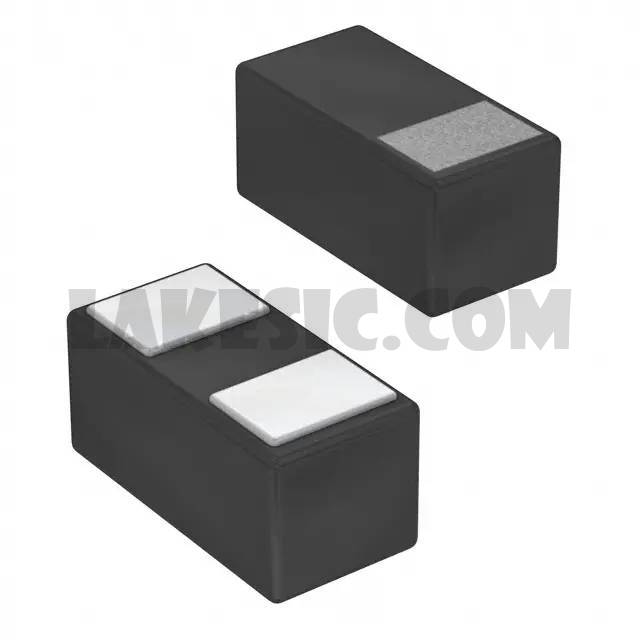

BAT30F4

BAT30F4

Part NumberBAT30F4

ManufacturerSTMicroelectronics

DescriptionDIODE SCHOTTKY 30V 300MA 0201

DatasheetBAT30F4

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 300mA Surface Mount 0201

To learn about the specification of BAT30F4, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT30F4 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT30F4.
We are offering BAT30F4 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT30F4 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAT30F4
Standard Package	15000
Manufacturer	STMicroelectronics
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	300mA
Voltage - Forward (Vf) (Max) @ If	310mV @ 10mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 30V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201
Operating Temperature - Junction	-30°C ~ 85°C
