BAV23C-E3-08

Part NumberBAV23C-E3-08

ManufacturerVishay Semiconductor Diodes Division

DescriptionDIODE ARRAY GP 200V 200MA SOT23

DatasheetBAV23C

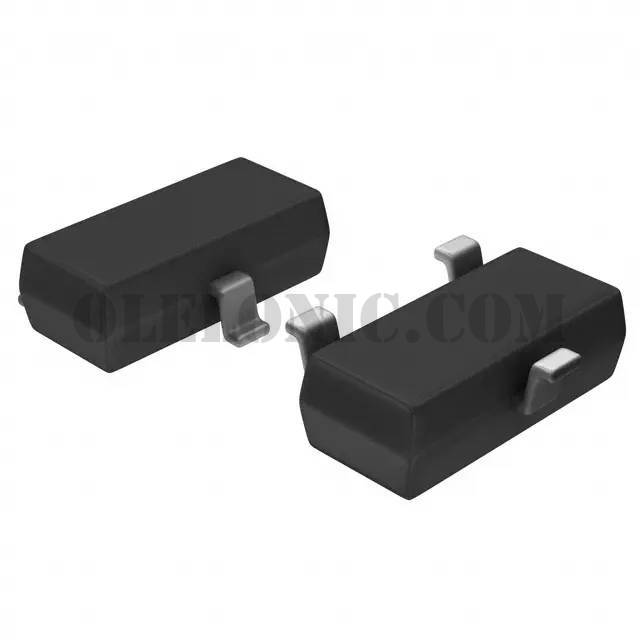

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Cathode Standard 200V 200mA Surface Mount TO-236-3, SC-59, SOT-23-3

To learn about the specification of BAV23C-E3-08, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV23C-E3-08 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV23C-E3-08.
We are offering BAV23C-E3-08 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV23C-E3-08 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAV23C
Standard Package	1
Manufacturer	Vishay Semiconductor Diodes Division
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io) (per Diode)	200mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 200mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 200V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23
