BC56-16PA-7

BC56-16PA-7

Part NumberBC56-16PA-7

ManufacturerDiodes Incorporated

DescriptionTRANS NPN 80V 1A UDFN

DatasheetBC56-16PA

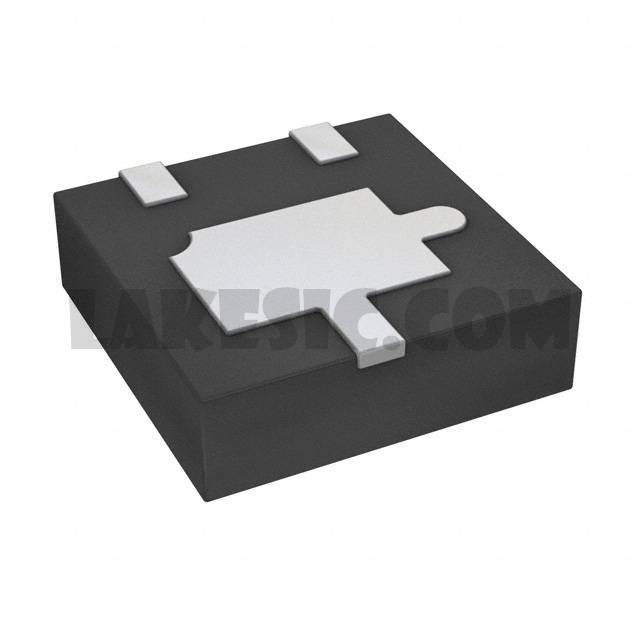

Package / Case3-UDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 1A 125MHz 520mW Surface Mount U-DFN-2020-3

To learn about the specification of BC56-16PA-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BC56-16PA-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BC56-16PA-7.
We are offering BC56-16PA-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BC56-16PA-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	BC56-16PA
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 2V
Power - Max	520mW
Frequency - Transition	125MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	3-UDFN Exposed Pad
Supplier Device Package	U-DFN-2020-3
