BFU690F,115

BFU690F,115

Part NumberBFU690F,115

ManufacturerNXP USA Inc.

DescriptionRF TRANS NPN 5.5V 18GHZ 4DFP

DatasheetBFU690F

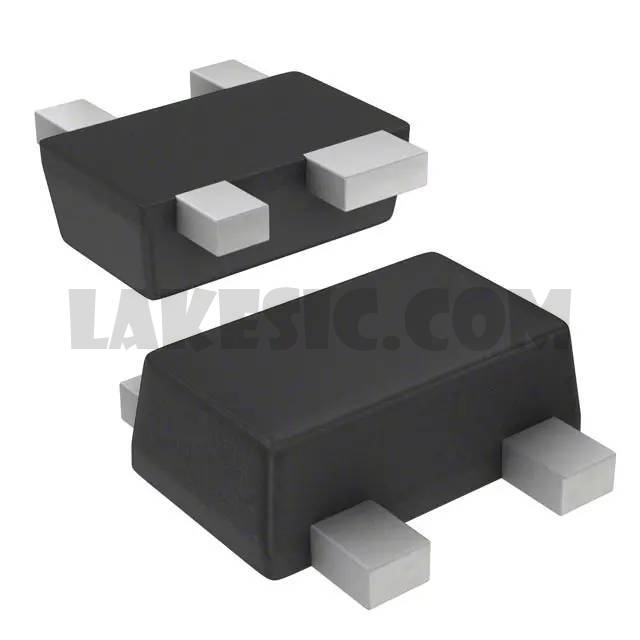

Package / CaseSOT-343F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 5.5V 100mA 18GHz 230mW Surface Mount 4-DFP

To learn about the specification of BFU690F,115, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BFU690F,115 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BFU690F,115.
We are offering BFU690F,115 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BFU690F,115 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	BFU690F
Standard Package	3000
Manufacturer	NXP USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	5.5V
Frequency - Transition	18GHz
Noise Figure (dB Typ @ f)	0.6dB ~ 0.7dG @ 1.5GHz ~ 2.4GHz
Gain	15.5dB ~ 18.5dB
Power - Max	230mW
DC Current Gain (hFE) (Min) @ Ic, Vce	90 @ 20mA, 2V
Current - Collector (Ic) (Max)	100mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-343F
Supplier Device Package	4-DFP
Base Part Number	BFU690
