Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	2SC5086
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	7GHz
Noise Figure (dB Typ @ f)	1dB @ 500MHz
Gain	-
Power - Max	100mW
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 20mA, 10V
Current - Collector (Ic) (Max)	80mA
Operating Temperature	125°C (TJ)
Mounting Type	Surface Mount

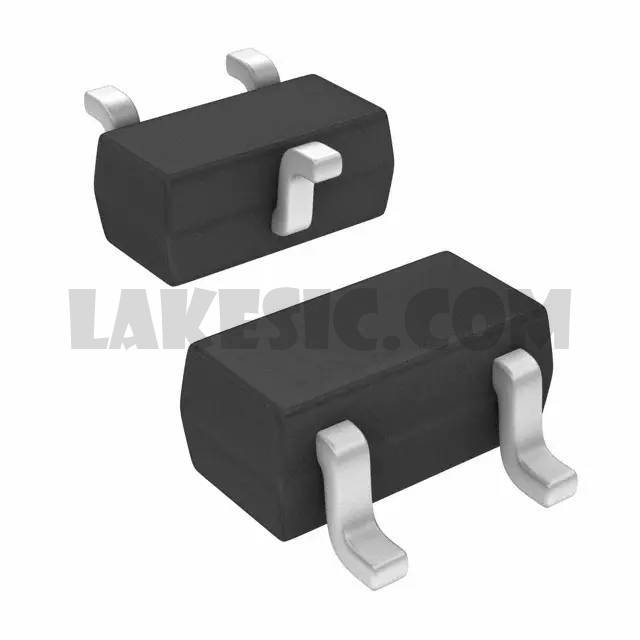

Package / Case	SC-75, SOT-416
Supplier Device Package	SSM

2SC5086-O,LF	Toshiba Semiconductor and Storage, RF Transistor NPN 12V 80mA 7GHz 100mW Surface Mount SSM,	View
BFU590GX	NXP USA Inc., RF Transistor NPN 12V 200mA 8.5GHz 2W Surface Mount SOT-223,	View
BFP193E6327HTSA1	Infineon Technologies, RF Transistor NPN 12V 80mA 8GHz 580mW Surface Mount PG-SOT143-4,	View
MMBTH10RG	ON Semiconductor, RF Transistor NPN 40V 50mA 450MHz 225mW Surface Mount SOT-23-3,	View
2SC2714-Y(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 30V 20mA 550MHz 100mW Surface Mount S-Mini,	View
BFU530XRR	NXP USA Inc., RF Transistor NPN 12V 40mA 11GHz 450mW Surface Mount SOT-143R, Automotive, AEC-Q101	View
2SC5095-O(TE85L,F)	Toshiba Semiconductor and Storage, RF Transistor NPN 10V 15mA 10GHz 100mW Surface Mount SC-70,	View
BFR183E6327HTSA1	Infineon Technologies, RF Transistor NPN 12V 65mA 8GHz 450mW Surface Mount SOT-23-3,	View
BFS17WH6327XTSA1	Infineon Technologies, RF Transistor NPN 15V 25mA 1.4GHz 280mW Surface Mount PG-SOT323-3,	View
BFU550R	NXP USA Inc., RF Transistor NPN 12V 50mA 11GHz 450mW Surface Mount SOT-143B, Automotive, AEC-Q101	View
MMBT5179	ON Semiconductor, RF Transistor NPN 12V 50mA 2GHz 225mW Surface Mount SOT-23-3 (TO-236),	View
BFP840FESDH6327XTSA1	Infineon Technologies, RF Transistor NPN 2.6V 35mA 85GHz 75mW Surface Mount 4-TSFP,	View

2SC5086-O,LF

Part Number2SC5086-O,LF
