BSC019N04NSGATMA1

BSC019N04NSGATMA1

Part NumberBSC019N04NSGATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 40V 100A TDSON-8

DatasheetBSC019N04NS G

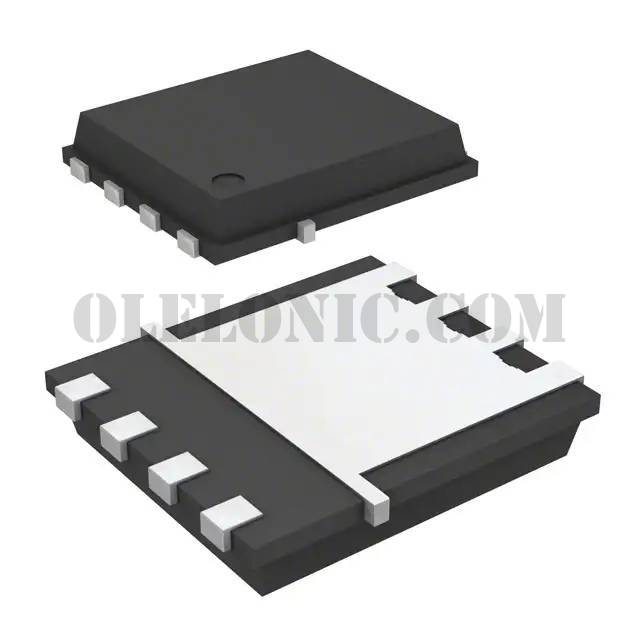

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 30A (Ta), 100A (Tc) 2.5W (Ta), 125W (Tc) Surface Mount PG-TDSON-8-1

To learn about the specification of BSC019N04NSGATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSC019N04NSGATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSC019N04NSGATMA1.
We are offering BSC019N04NSGATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSC019N04NSGATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BSC019N04NS G
Standard Package	1
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	30A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.9mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	4V @ 85µA
Gate Charge (Qg) (Max) @ Vgs	108nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8800pF @ 20V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 125W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-1
Package / Case	8-PowerTDFN
