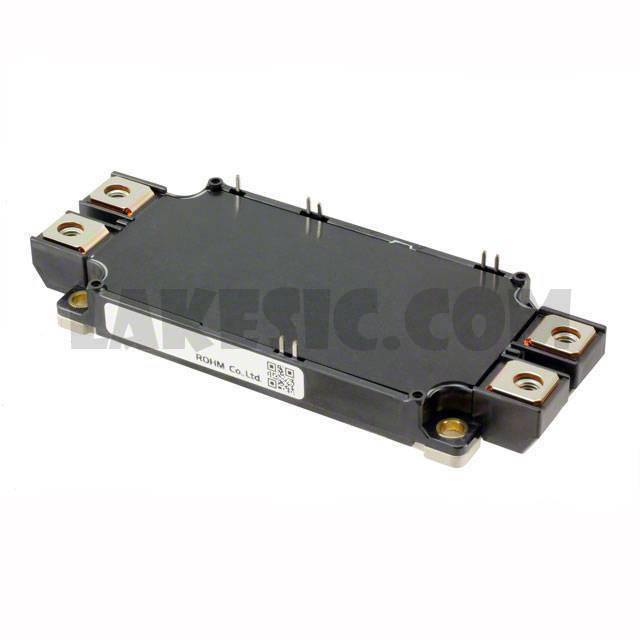

BSM300D12P2E001

Part NumberBSM300D12P2E001

ManufacturerRohm Semiconductor

DescriptionMOSFET 2N-CH 1200V 300A

DatasheetBSM300D12P2E001

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 300A (Tc) 1875W Chassis Mount Module

To learn about the specification of BSM300D12P2E001, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSM300D12P2E001 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSM300D12P2E001.
We are offering BSM300D12P2E001 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSM300D12P2E001 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	BSM300D12P2E001
Standard Package	4
Manufacturer	Rohm Semiconductor
Series	-
Packaging	Tray
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	300A (Tc)
Rds On (Max) @ Id, Vgs	-
Vgs(th) (Max) @ Id	4V @ 68mA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	35000pF @ 10V
Power - Max	1875W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
