BSZ067N06LS3GATMA1
BSZ067N06LS3GATMA1

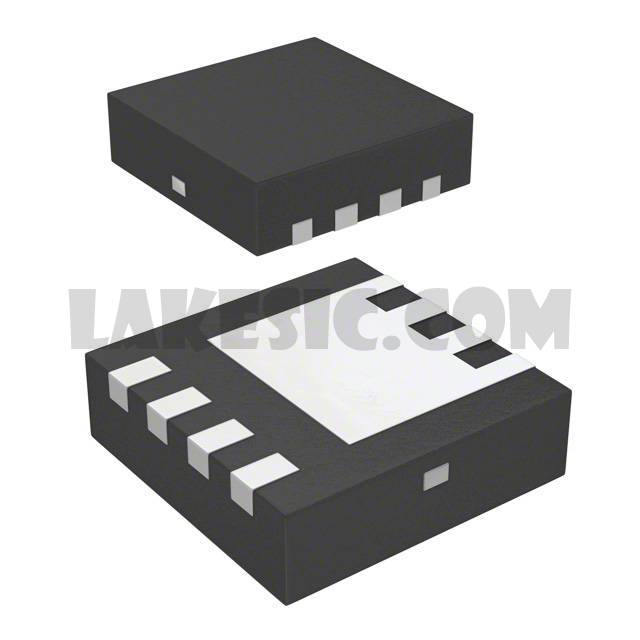

Part Number BSZ067N06LS3GATMA1 Description MOSFET N-CH 60V 20A TSDSON-8 Package / Case 8-PowerVDFNUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 60V 14A (Ta), 20A (Tc) 2.1W (Ta), 69W (Tc) Surface Mount PG-TSDSON-8
To learn about the specification of BSZ067N06LS3GATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSZ067N06LS3GATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSZ067N06LS3GATMA1.
We are offering BSZ067N06LS3GATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BSZ067N06LS3GATMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet BSZ067N06LS3 G Standard Package 1 Manufacturer Infineon Technologies Series OptiMOS™ Packaging Cut Tape (CT) Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 60V Current - Continuous Drain (Id) @ 25°C 14A (Ta), 20A (Tc) Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V Rds On (Max) @ Id, Vgs 6.7mOhm @ 20A, 10V Vgs(th) (Max) @ Id 2.2V @ 35µA Gate Charge (Qg) (Max) @ Vgs 67nC @ 10V Vgs (Max) ±20V Input Capacitance (Ciss) (Max) @ Vds 5100pF @ 30V FET Feature - Power Dissipation (Max) 2.1W (Ta), 69W (Tc) Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Supplier Device Package PG-TSDSON-8 Package / Case 8-PowerVDFN
