BSZ340N08NS3GATMA1
BSZ340N08NS3GATMA1

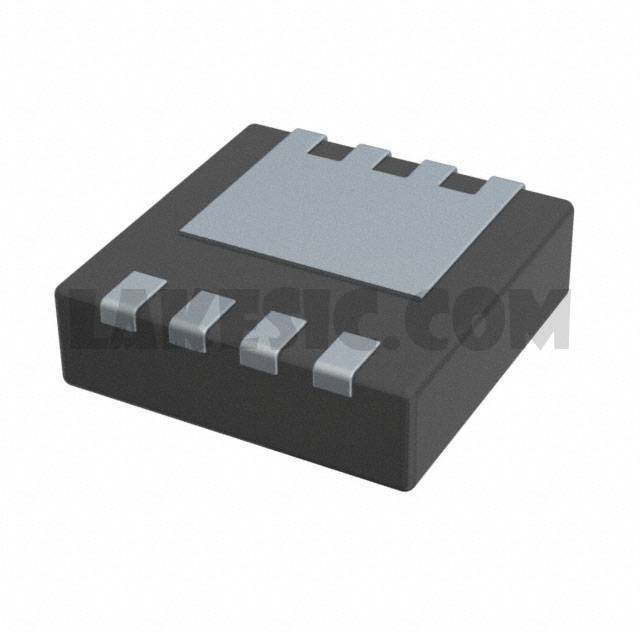

Part Number BSZ340N08NS3GATMA1 Description MOSFET N-CH 80V 23A TSDSON-8 Package / Case 8-PowerTDFNUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 80V 6A (Ta), 23A (Tc) 2.1W (Ta), 32W (Tc) Surface Mount PG-TSDSON-8
To learn about the specification of BSZ340N08NS3GATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSZ340N08NS3GATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSZ340N08NS3GATMA1.
We are offering BSZ340N08NS3GATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BSZ340N08NS3GATMA1 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet BSZ340N08NS3 G Standard Package 5000 Manufacturer Infineon Technologies Series OptiMOS™ Packaging Tape & Reel (TR) Part Status Active FET Type N-Channel Technology MOSFET (Metal Oxide) Drain to Source Voltage (Vdss) 80V Current - Continuous Drain (Id) @ 25°C 6A (Ta), 23A (Tc) Drive Voltage (Max Rds On, Min Rds On) 6V, 10V Rds On (Max) @ Id, Vgs 34mOhm @ 12A, 10V Vgs(th) (Max) @ Id 3.5V @ 12µA Gate Charge (Qg) (Max) @ Vgs 9.1nC @ 10V Vgs (Max) ±20V Input Capacitance (Ciss) (Max) @ Vds 630pF @ 40V FET Feature - Power Dissipation (Max) 2.1W (Ta), 32W (Tc) Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Surface Mount Supplier Device Package PG-TSDSON-8 Package / Case 8-PowerTDFN
