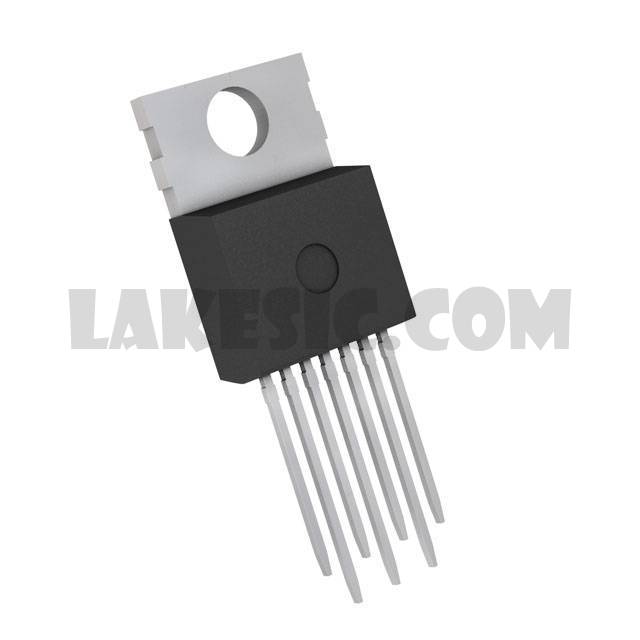

BTS282ZE3230AKSA2

BTS282ZE3230AKSA2

Part NumberBTS282ZE3230AKSA2

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 49V 80A TO220-7

DatasheetBTS282Z

Package / CaseTO-220-7

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 49V 80A (Tc) 300W (Tc) Through Hole PG-TO220-7-12

To learn about the specification of BTS282ZE3230AKSA2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BTS282ZE3230AKSA2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BTS282ZE3230AKSA2.
We are offering BTS282ZE3230AKSA2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BTS282ZE3230AKSA2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BTS282Z
Standard Package	500
Manufacturer	Infineon Technologies
Series	TEMPFET®
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	49V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	6.5mOhm @ 36A, 10V
Vgs(th) (Max) @ Id	2V @ 240µA
Gate Charge (Qg) (Max) @ Vgs	232nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4800pF @ 25V
FET Feature	Temperature Sensing Diode
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	PG-TO220-7-12
Package / Case	TO-220-7
