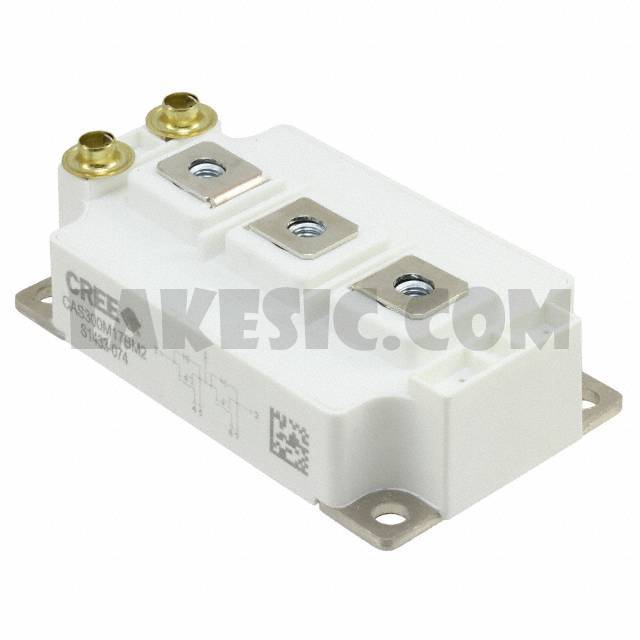

CAS300M17BM2

Part NumberCAS300M17BM2

ManufacturerCree/Wolfspeed

DescriptionMOSFET 2N-CH 1700V 325A MODULE

DatasheetCAS300M17BM2 Datasheet

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1700V (1.7kV) 325A (Tc) 1760W Chassis Mount Module

To learn about the specification of CAS300M17BM2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CAS300M17BM2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CAS300M17BM2.
We are offering CAS300M17BM2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CAS300M17BM2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CAS300M17BM2 Datasheet
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	Z-Rec®
Packaging	Tray
Part Status	Active
FET Type	2 N-Channel (Half Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1700V (1.7kV)
Current - Continuous Drain (Id) @ 25°C	325A (Tc)
Rds On (Max) @ Id, Vgs	10mOhm @ 225A, 20V
Vgs(th) (Max) @ Id	2.3V @ 15mA (Typ)
Gate Charge (Qg) (Max) @ Vgs	1076nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	20000pF @ 1000V
Power - Max	1760W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
