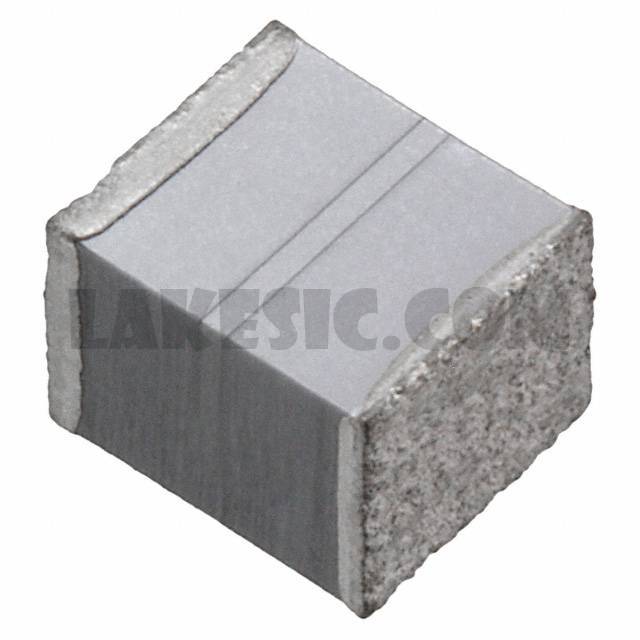

Categories	Capacitors / Film Capacitors
Datasheet	CB Series Datasheet
Standard Package	1
Manufacturer	AVX Corporation
Series	CB
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	0.12µF
Tolerance	±5%
Voltage Rating - AC	160V
Voltage Rating - DC	250V
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	2220 (5750 Metric)
Size / Dimension	0.228" L x 0.197" W (5.80mm x 5.00mm)
Height - Seated (Max)	0.179" (4.55mm)
Termination	Solder Pads
Lead Spacing	-
Applications	General Purpose
Ratings	-
Features	-
