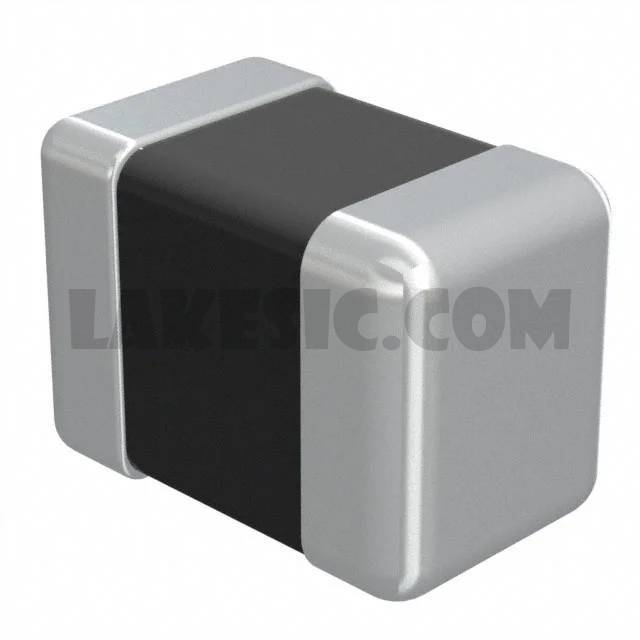

CBC2012T470K

CBC2012T470K

Part NumberCBC2012T470K

ManufacturerTaiyo Yuden

DescriptionFIXED IND 47UH 150MA 7.54 OHM

DatasheetCBC2012T470K View all Specification

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47µH Unshielded Wirewound Inductor 150mA 7.54Ohm Max 0805 (2012 Metric)

To learn about the specification of CBC2012T470K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CBC2012T470K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CBC2012T470K.
We are offering CBC2012T470K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CBC2012T470K - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	CBC2012T470K View all Specification
Standard Package	1
Manufacturer	Taiyo Yuden
Series	CB, C Type
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	47µH
Tolerance	±10%
Current Rating (Amps)	150mA
Current - Saturation	120mA
Shielding	Unshielded
DC Resistance (DCR)	7.54Ohm Max
Q @ Freq	-
Frequency - Self Resonant	11MHz
Ratings	-
Operating Temperature	-40°C ~ 105°C
Inductance Frequency - Test	2.52MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.057" (1.45mm)
