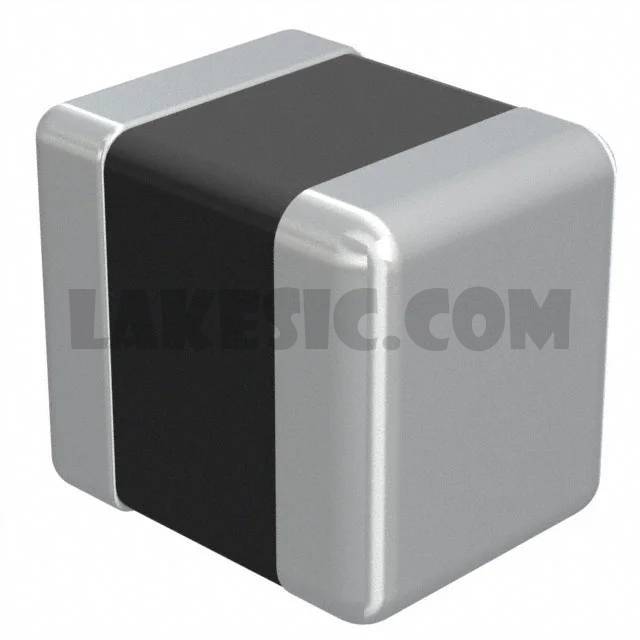

CBC2016T330K


CBC2016T330K

Part NumberCBC2016T330K

Manufacturer

Description

Datasheet

Package / Case0806 (2016 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CBC2016T330K - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2000
ManufacturerTaiyo Yuden
SeriesCB, C Type
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance33µH
Tolerance±10%
Current Rating (Amps)220mA
Current - Saturation220mA
ShieldingUnshielded
DC Resistance (DCR)3.64Ohm Max
Q @ Freq-
Frequency - Self Resonant14MHz
Ratings-
Operating Temperature-40°C ~ 105°C
Inductance Frequency - Test2.52MHz
Mounting TypeSurface Mount
Package / Case0806 (2016 Metric)
Supplier Device Package0806 (2016 Metric)
Size / Dimension0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max)0.071" (1.80mm)
