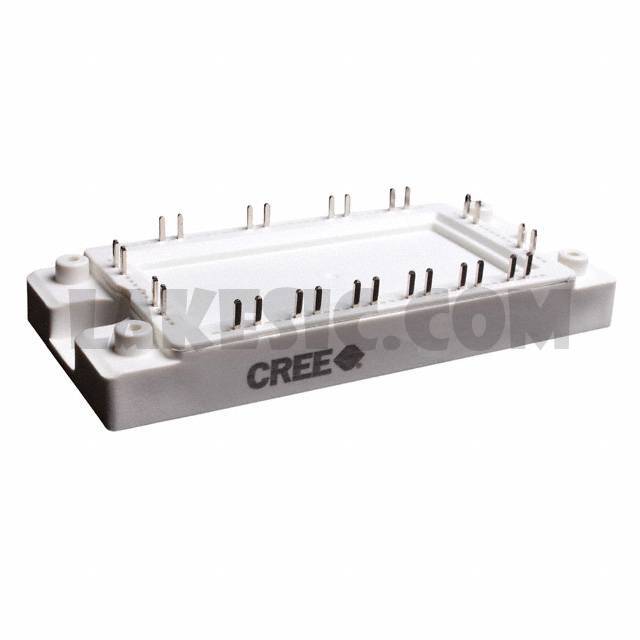

CCS020M12CM2

Part NumberCCS020M12CM2

ManufacturerCree/Wolfspeed

DescriptionMOSFET 6N-CH 1200V 29.5A MODULE

DatasheetCCS020M12CM2 Datasheet

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 6 N-Channel (3-Phase Bridge) 1200V (1.2kV) 29.5A (Tc) 167W Chassis Mount Module

To learn about the specification of CCS020M12CM2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CCS020M12CM2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CCS020M12CM2.
We are offering CCS020M12CM2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CCS020M12CM2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CCS020M12CM2 Datasheet
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	Z-Rec®
Packaging	Tray
Part Status	Active
FET Type	6 N-Channel (3-Phase Bridge)
FET Feature	Silicon Carbide (SiC)
Drain to Source Voltage (Vdss)	1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C	29.5A (Tc)
Rds On (Max) @ Id, Vgs	98mOhm @ 20A, 20V
Vgs(th) (Max) @ Id	2.2V @ 1mA (Typ)
Gate Charge (Qg) (Max) @ Vgs	61.5nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds	900pF @ 800V
Power - Max	167W
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	Module
Supplier Device Package	Module
