Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	CDBHM120L~1100L-HF
Standard Package	1
Manufacturer	Comchip Technology
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Schottky
Voltage - Peak Reverse (Max)	100V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	850mV @ 1A
Current - Reverse Leakage @ Vr	500µA @ 100V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	MBS
Base Part Number	CDBHM1100

TBS22J-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-TBS,	View
SDB104-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 400V Surface Mount SDB-1,	View
FTB6F-15FTR	SMC Diode Solutions, Bridge Rectifier Single Phase Standard 600V Surface Mount ABF,	View
MSB10M-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-MSB,	View
B4S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 400V Surface Mount MBS,	View
CDBHD260-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 60V Surface Mount Mini-Dip (TO-269AA),	View
DBLS207G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBLS,	View
HD04-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-MiniDIP,	View
DF005S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 50V Surface Mount DF-S,	View
CD-MBL210S	Bourns Inc., Bridge Rectifier Single Phase Standard 1kV Surface Mount,	View
CBRHD-01 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-HD DIP,	View
DF04S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View

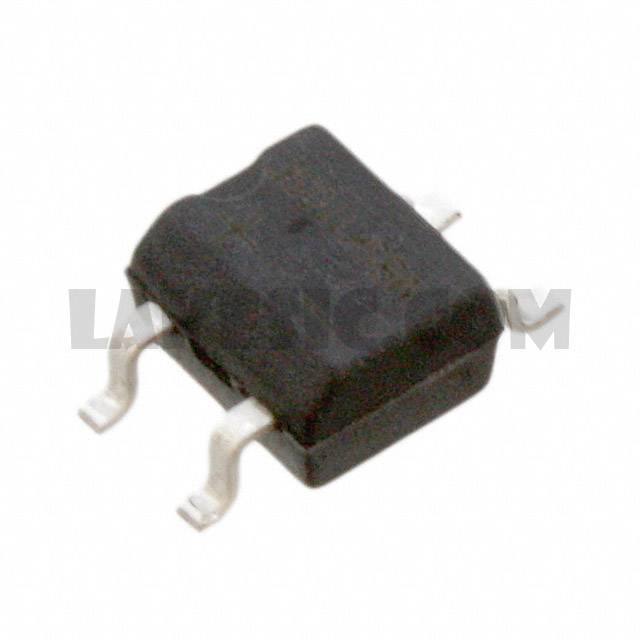

CDBHM1100L-HF
