Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	DB151S - DB157S
Standard Package	1
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1.5A
Current - Reverse Leakage @ Vr	5µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

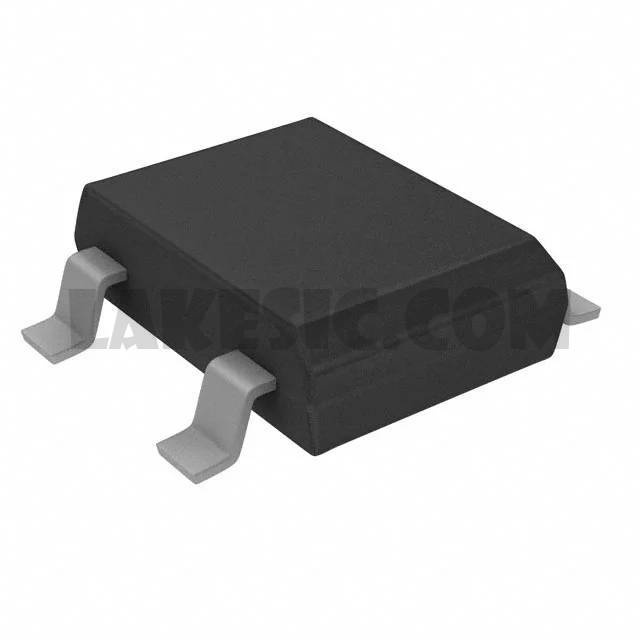

Package / Case	4-SMD, Gull Wing
Supplier Device Package	DB-S
