Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	CDBHM220L~2100L-HF
Standard Package	1
Manufacturer	Comchip Technology
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Schottky
Voltage - Peak Reverse (Max)	40V
Current - Average Rectified (Io)	2A
Voltage - Forward (Vf) (Max) @ If	550mV @ 2A
Current - Reverse Leakage @ Vr	1mA @ 40V
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount

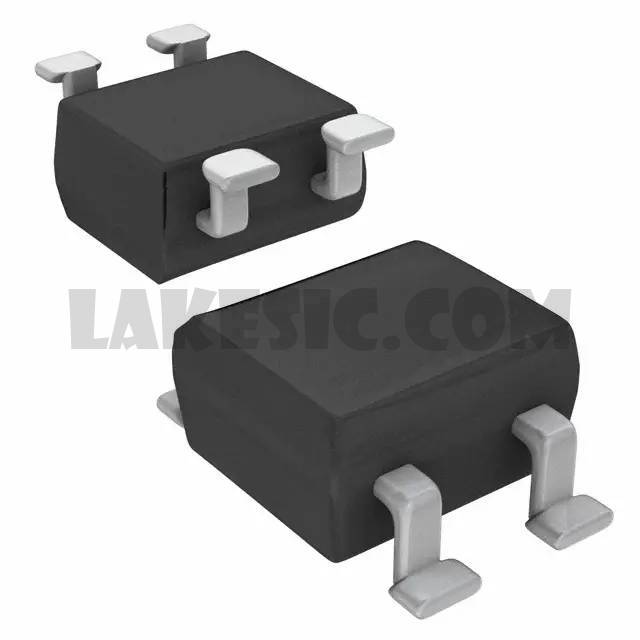

Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	MBS-2
Base Part Number	CDBHM240
