CDM22011-600LRFP SL
CDM22011-600LRFP SL
Part Number CDM22011-600LRFP SL
Description MOSFET N-CH 11A 600V TO-220FP

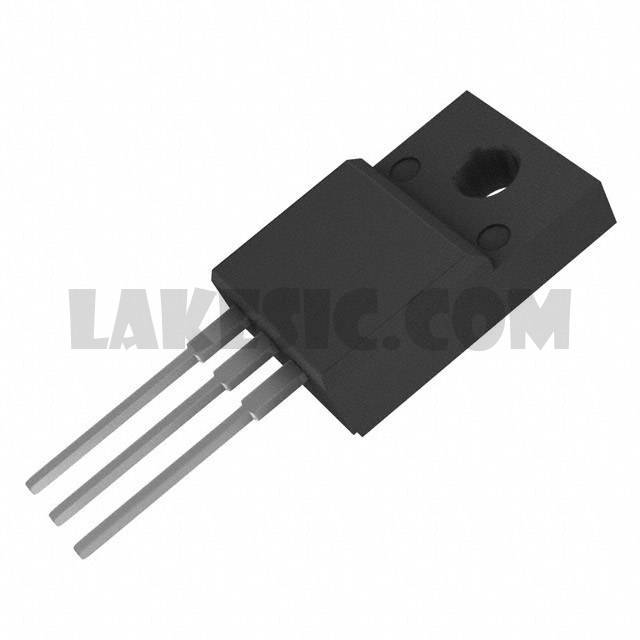

Package / Case TO-220-3 Full Pack
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description N-Channel 600V 11A (Tc) 25W (Tc) Through Hole TO-220FP
To learn about the specification of CDM22011-600LRFP SL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CDM22011-600LRFP SL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CDM22011-600LRFP SL.
We are offering CDM22011-600LRFP SL for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CDM22011-600LRFP SL - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet CDM22011-600LRFP
Standard Package 50
Manufacturer Central Semiconductor Corp
Series -
Packaging Tube
Part Status Active
FET Type N-Channel
Technology MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600V
Current - Continuous Drain (Id) @ 25°C 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Rds On (Max) @ Id, Vgs 360mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 23.05nC @ 10V
Vgs (Max) 30V
Input Capacitance (Ciss) (Max) @ Vds 763pF @ 100V
FET Feature -
Power Dissipation (Max) 25W (Tc)
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Supplier Device Package TO-220FP
Package / Case TO-220-3 Full Pack
