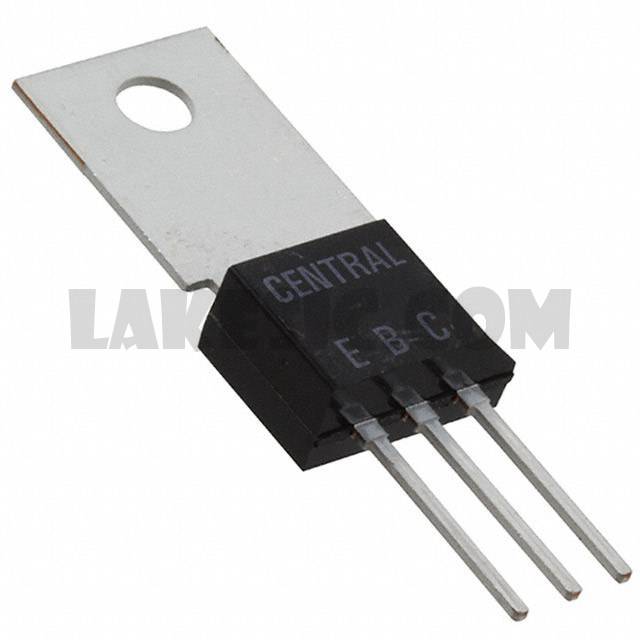

CEN-U05

CEN-U05

Part NumberCEN-U05

ManufacturerCentral Semiconductor Corp

DescriptionTRANS NPN 60V 2A TO202

DatasheetCEN-Ux5 thru CEN-Ux7

Package / CaseTO-202 Long Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 60V 2A 50MHz 1.75W Through Hole TO-202

To learn about the specification of CEN-U05, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CEN-U05 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CEN-U05.
We are offering CEN-U05 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CEN-U05 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	CEN-Ux5 thru CEN-Ux7
Standard Package	500
Manufacturer	Central Semiconductor Corp
Series	-
Packaging	Bulk
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	2A
Voltage - Collector Emitter Breakdown (Max)	60V
Vce Saturation (Max) @ Ib, Ic	350mV @ 25mA, 250mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 500mA, 1V
Power - Max	1.75W
Frequency - Transition	50MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-202 Long Tab
Supplier Device Package	TO-202
