Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF

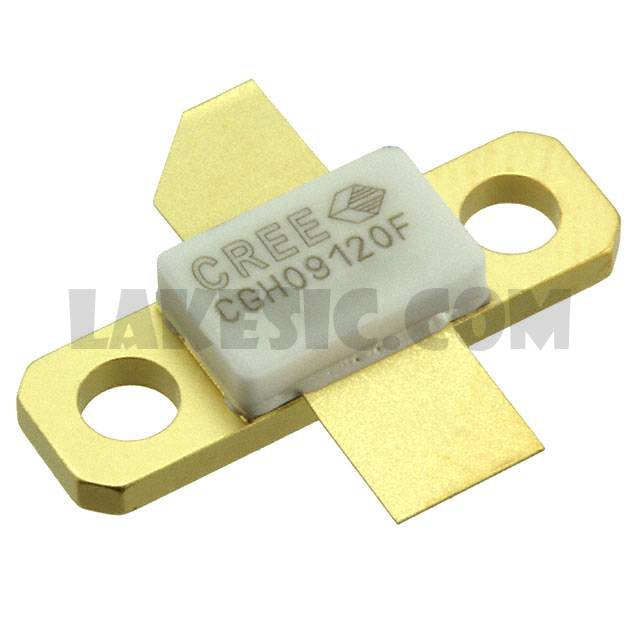

Datasheet	CGH09120F
Standard Package	1
Manufacturer	Cree/Wolfspeed
Series	GaN
Packaging	Tray
Part Status	Active
Transistor Type	HEMT
Frequency	2.5GHz
Gain	21.5dB
Voltage - Test	28V
Current Rating (Amps)	-
Noise Figure	-
Current - Test	1.2A
Power - Output	120W
Voltage - Rated	84V
Package / Case	440095
Supplier Device Package	440095
