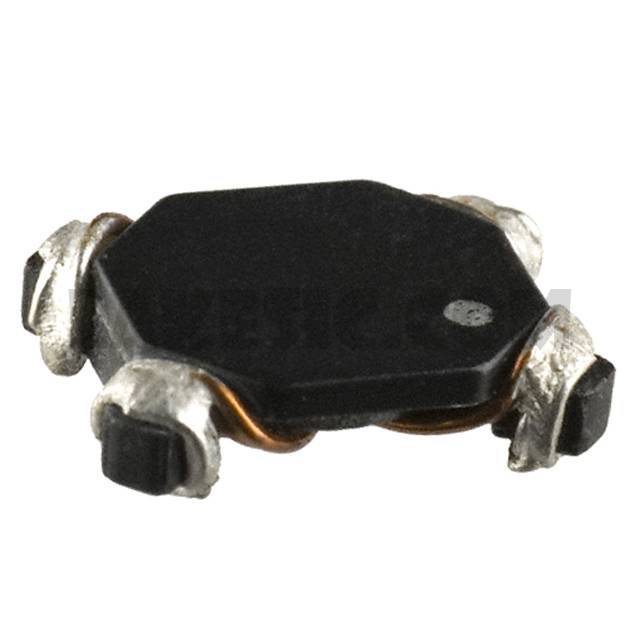

CMS1-4-R


CMS1-4-R

Part NumberCMS1-4-R

Manufacturer

Description

Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

CMS1-4-R - Product Attributes

Categories Filters / Common Mode Chokes
Datasheet
Standard Package1
ManufacturerEaton - Electronics Division
SeriesCMS
PackagingCut Tape (CT)
Part StatusActive
Filter TypePower Line
Number of Lines2
Inductance @ Frequency18µH @ 100kHz
Current Rating (Max)3.8A
DC Resistance (DCR) (Max)8.9mOhm (Typ)
Voltage Rating - DC-
Voltage Rating - AC-
Operating Temperature-40°C ~ 160°C
Ratings-
Approvals-
Features-
Mounting TypeSurface Mount
Size / Dimension0.370" L x 0.283" W (9.40mm x 7.20mm)
Height (Max)0.102" (2.60mm)
Package / CaseHorizontal, 4 PC Pad
