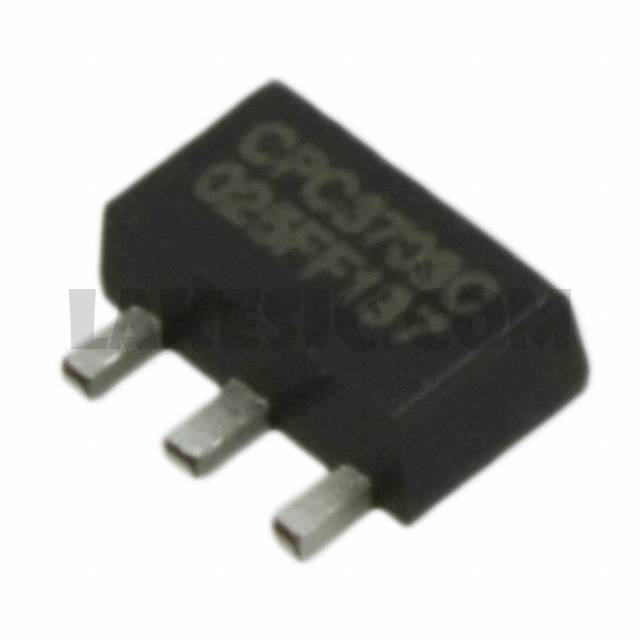

CPC3703CTR

CPC3703CTR

Part NumberCPC3703CTR

ManufacturerIXYS Integrated Circuits Division

DescriptionMOSFET N-CH 250V 360MA SOT-89

DatasheetCPC3703

Package / CaseTO-243AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 250V 360mA (Ta) 1.1W (Ta) Surface Mount SOT-89-3

To learn about the specification of CPC3703CTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPC3703CTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPC3703CTR.
We are offering CPC3703CTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPC3703CTR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CPC3703
Standard Package	1
Manufacturer	IXYS Integrated Circuits Division
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	250V
Current - Continuous Drain (Id) @ 25°C	360mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)	0V
Rds On (Max) @ Id, Vgs	4Ohm @ 200mA, 0V
Vgs(th) (Max) @ Id	-
Vgs (Max)	±15V
Input Capacitance (Ciss) (Max) @ Vds	350pF @ 25V
FET Feature	Depletion Mode
Power Dissipation (Max)	1.1W (Ta)
Operating Temperature	-55°C ~ 125°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	SOT-89-3
Package / Case	TO-243AA
