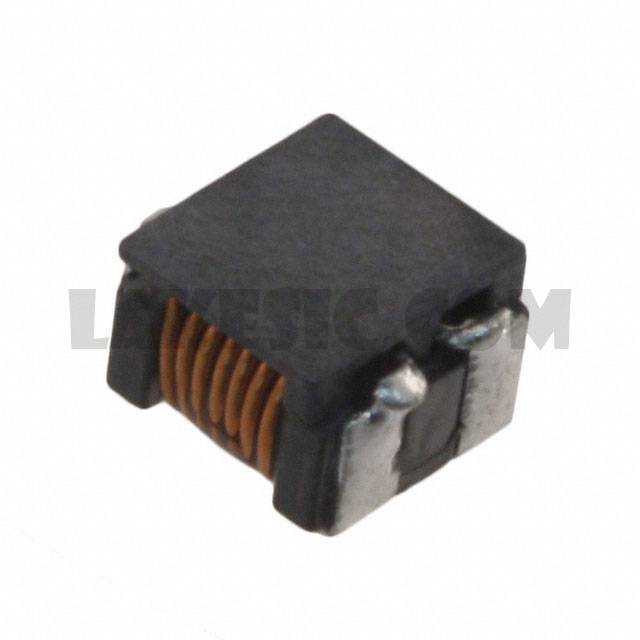

CPFC6D36NP-100M06

Part NumberCPFC6D36NP-100M06

ManufacturerSumida America Components Inc.

DescriptionCMC 2.5A 2LN 600 OHM SMD

DatasheetCPFC6D36 Series

Package / CaseHorizontal, 4 J-Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 600 Ohms @ 100MHz 2.5A DCR 20mOhm

To learn about the specification of CPFC6D36NP-100M06, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPFC6D36NP-100M06 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPFC6D36NP-100M06.
We are offering CPFC6D36NP-100M06 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPFC6D36NP-100M06 - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	CPFC6D36 Series
Standard Package	1000
Manufacturer	Sumida America Components Inc.
Series	CPFC
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	Power Line
Number of Lines	2
Impedance @ Frequency	600 Ohms @ 100MHz
Current Rating (Max)	2.5A
DC Resistance (DCR) (Max)	20mOhm
Voltage Rating - DC	-
Voltage Rating - AC	-
Operating Temperature	-20°C ~ 100°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.244" L x 0.209" W (6.20mm x 5.30mm)
Height (Max)	0.150" (3.80mm)
Package / Case	Horizontal, 4 J-Lead
