CPFC74NP-PS10H2A15
CPFC74NP-PS10H2A15

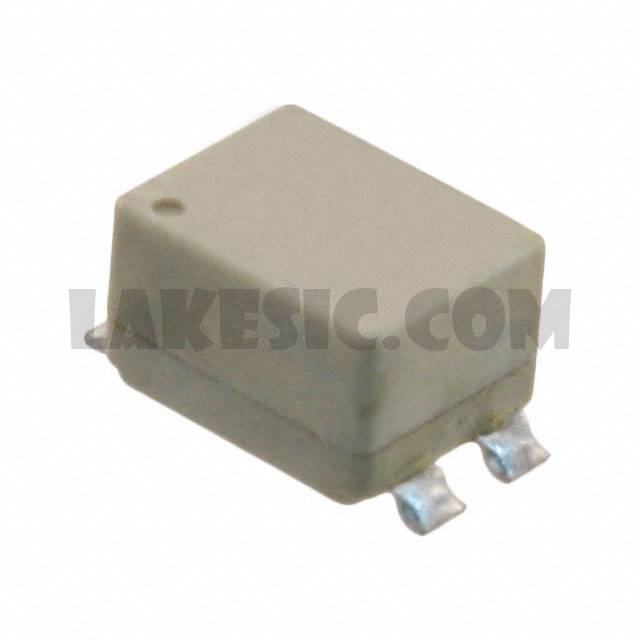

Part Number CPFC74NP-PS10H2A15 Description CMC 1.5A 2LN 700 OHM SMD Package / Case Vertical, 4 Gull WingUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2 Line Common Mode Choke Surface Mount 700 Ohms @ 100MHz 1.5A DCR 120mOhm (Typ)
To learn about the specification of CPFC74NP-PS10H2A15, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPFC74NP-PS10H2A15 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPFC74NP-PS10H2A15.
We are offering CPFC74NP-PS10H2A15 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
CPFC74NP-PS10H2A15 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet CPFC74 Series Datasheet Standard Package 1 Manufacturer Sumida America Components Inc. Series CPFC Packaging Cut Tape (CT) Part Status Active Filter Type Power Line Number of Lines 2 Impedance @ Frequency 700 Ohms @ 100MHz Current Rating (Max) 1.5A DC Resistance (DCR) (Max) 120mOhm (Typ) Voltage Rating - DC - Voltage Rating - AC - Operating Temperature - Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.374" L x 0.224" W (9.50mm x 5.70mm) Height (Max) 0.200" (5.08mm) Package / Case Vertical, 4 Gull Wing
