CPH6636R-TL-W

CPH6636R-TL-W

Part NumberCPH6636R-TL-W

ManufacturerON Semiconductor

DescriptionMOSFET 2N-CH 24V 6A CPH6

DatasheetCPH6636R

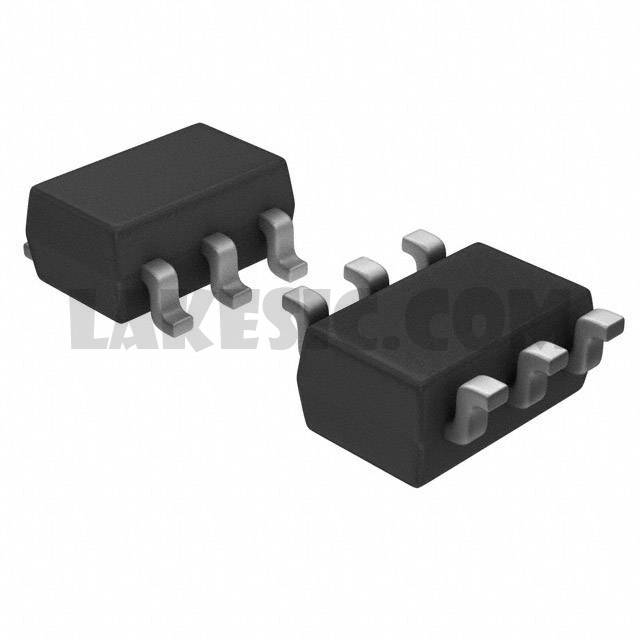

Package / CaseSOT-23-6 Thin, TSOT-23-6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 24V 6A 900mW Surface Mount 6-CPH

To learn about the specification of CPH6636R-TL-W, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CPH6636R-TL-W with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CPH6636R-TL-W.
We are offering CPH6636R-TL-W for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CPH6636R-TL-W - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CPH6636R
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Not For New Designs
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate, 2.5V Drive
Drain to Source Voltage (Vdss)	24V
Current - Continuous Drain (Id) @ 25°C	6A
Rds On (Max) @ Id, Vgs	20mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	-
Gate Charge (Qg) (Max) @ Vgs	3nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	-
Power - Max	900mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Supplier Device Package	6-CPH
