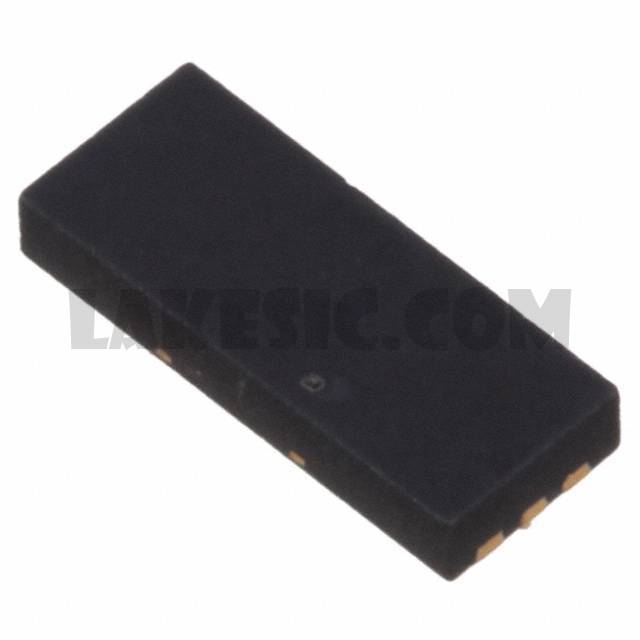

DMG5802LFX-7

DMG5802LFX-7

Part NumberDMG5802LFX-7

ManufacturerDiodes Incorporated

DescriptionMOSFET 2N-CH 24V 6.5A 6DFN

DatasheetDMG5802LFX

Package / Case6-VFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Drain 24V 6.5A 980mW Surface Mount W-DFN5020-6

To learn about the specification of DMG5802LFX-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMG5802LFX-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMG5802LFX-7.
We are offering DMG5802LFX-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMG5802LFX-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	DMG5802LFX
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Drain
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	24V
Current - Continuous Drain (Id) @ 25°C	6.5A
Rds On (Max) @ Id, Vgs	15mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	31.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	1066.4pF @ 15V
Power - Max	980mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VFDFN Exposed Pad
Supplier Device Package	W-DFN5020-6
