Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	CRS09
Standard Package	1
Manufacturer	Toshiba Semiconductor and Storage
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1.5A
Voltage - Forward (Vf) (Max) @ If	460mV @ 1.5A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	50µA @ 30V
Capacitance @ Vr, F	90pF @ 10V, 1MHz
Mounting Type	Surface Mount

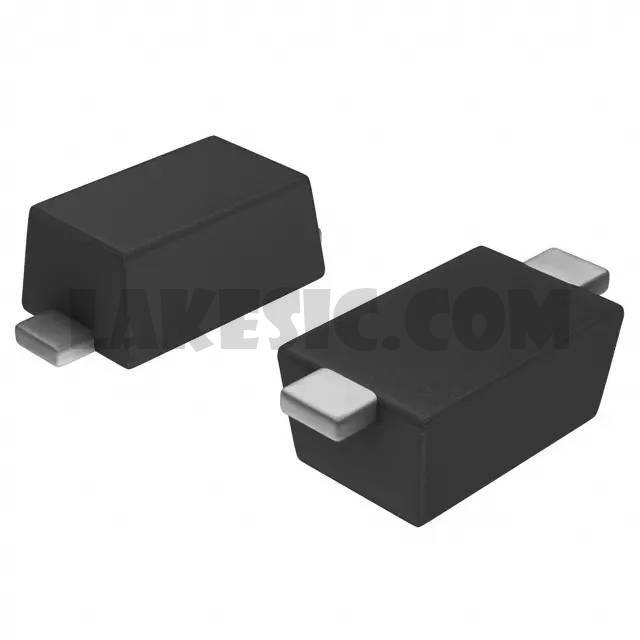

Package / Case	SOD-123F
Supplier Device Package	S-FLAT (1.6x3.5)
Operating Temperature - Junction	-40°C ~ 150°C
Base Part Number	CRS09
