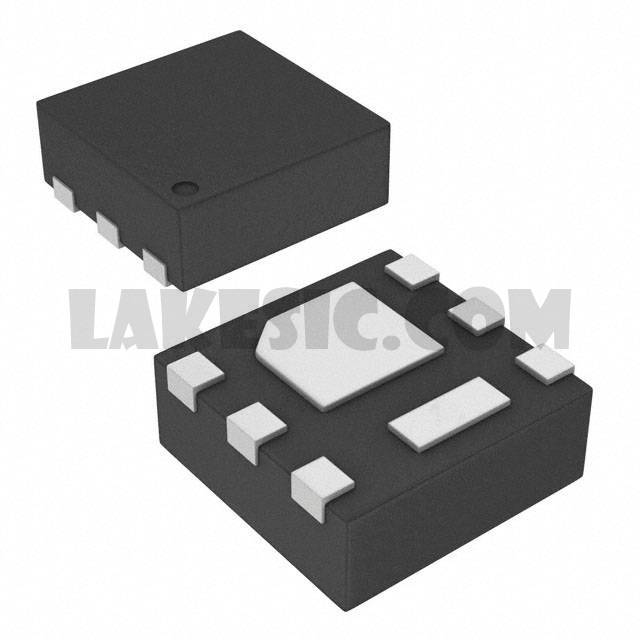

CSD16301Q2

CSD16301Q2

Part NumberCSD16301Q2

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 25V 6-SON

DatasheetCSD16301Q2

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 5A (Tc) 2.3W (Ta) Surface Mount 6-SON

To learn about the specification of CSD16301Q2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD16301Q2 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD16301Q2.
We are offering CSD16301Q2 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD16301Q2 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD16301Q2
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	3V, 8V
Rds On (Max) @ Id, Vgs	24mOhm @ 4A, 8V
Vgs(th) (Max) @ Id	1.55V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.8nC @ 4.5V
Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	340pF @ 12.5V
FET Feature	-
Power Dissipation (Max)	2.3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-SON
Package / Case	6-SMD, Flat Leads
