CSD22205LT

CSD22205LT

Part NumberCSD22205LT

ManufacturerTexas Instruments

DescriptionMOSFET P-CH 8V 7.4A 4-PICOSTAR

DatasheetCSD22205L Datasheet

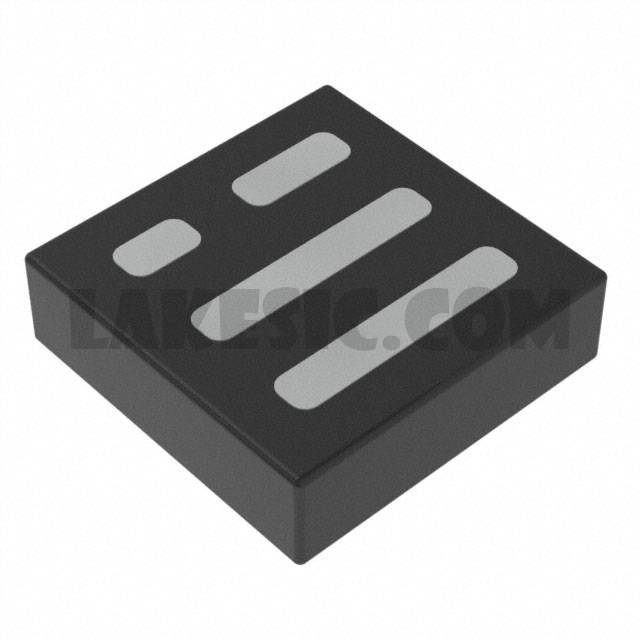

Package / Case4-XFLGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 8V 7.4A (Ta) 600mW (Ta) Surface Mount 4-PICOSTAR

To learn about the specification of CSD22205LT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD22205LT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD22205LT.
We are offering CSD22205LT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD22205LT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD22205L Datasheet
Standard Package	250
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	8V
Current - Continuous Drain (Id) @ 25°C	7.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	9.9mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.05V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.5nC @ 4.5V
Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	1390pF @ 4V
FET Feature	-
Power Dissipation (Max)	600mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-PICOSTAR
Package / Case	4-XFLGA
