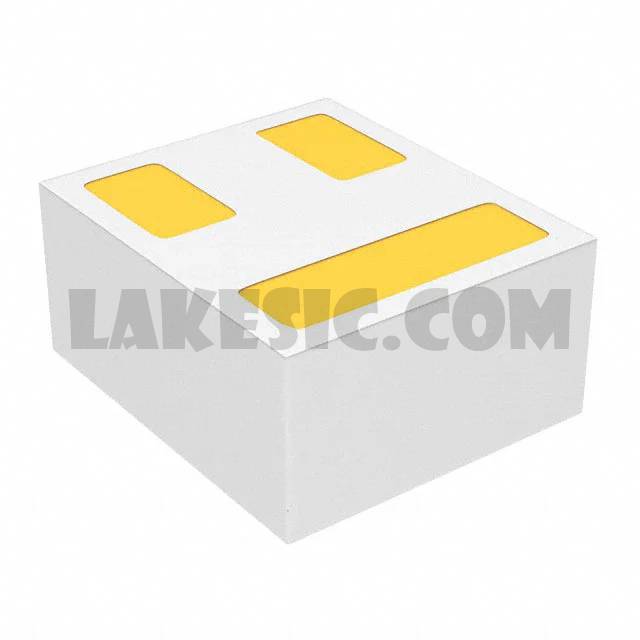

CSD23280F3

CSD23280F3

Part NumberCSD23280F3

ManufacturerTexas Instruments

DescriptionMOSFET P-CH 12V 1.8A PICOSTAR

DatasheetCSD23280F3 Datasheet

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 1.8A (Ta) 500mW (Ta) Surface Mount 3-PICOSTAR

To learn about the specification of CSD23280F3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD23280F3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD23280F3.
We are offering CSD23280F3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD23280F3 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD23280F3 Datasheet
Standard Package	3000
Manufacturer	Texas Instruments
Series	FemtoFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	116mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id	0.95V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	1.23nC @ 4.5V
Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	234pF @ 6V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PICOSTAR
Package / Case	3-XFDFN
