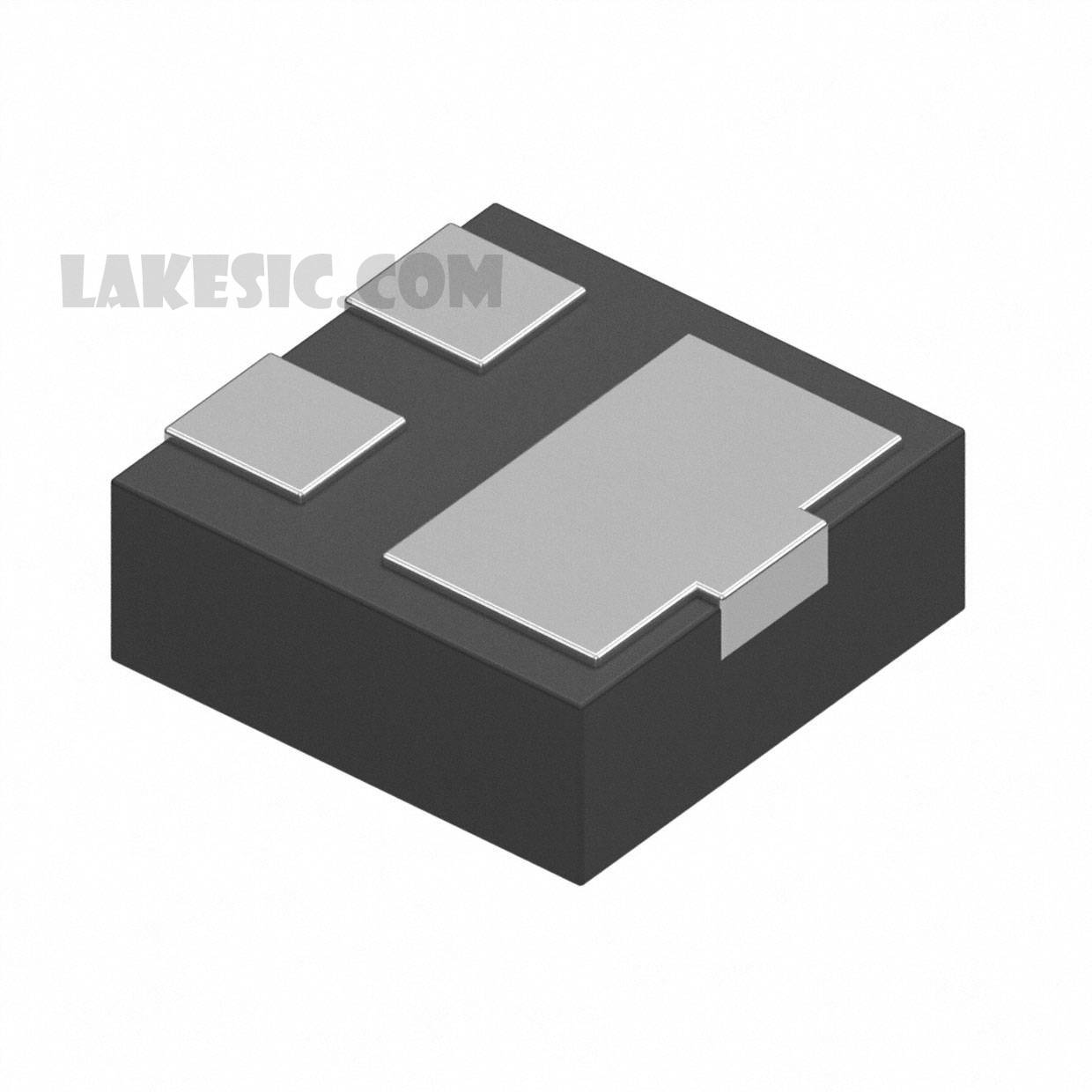

DMP1200UFR4-7

DMP1200UFR4-7

Part NumberDMP1200UFR4-7

ManufacturerDiodes Incorporated

DescriptionMOSFET P-CH 12V 2A X2-DFN1010-3

DatasheetDMP1200UFR4

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 2A (Ta) 480mW (Ta) Surface Mount X2-DFN1010-3

To learn about the specification of DMP1200UFR4-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DMP1200UFR4-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of DMP1200UFR4-7.
We are offering DMP1200UFR4-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

DMP1200UFR4-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	DMP1200UFR4
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	100mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5.8nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	514pF @ 5V
FET Feature	-
Power Dissipation (Max)	480mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	X2-DFN1010-3
Package / Case	3-XFDFN
