CSD25213W10

CSD25213W10

Part NumberCSD25213W10

ManufacturerTexas Instruments

DescriptionMOSFET P-CH 20V 1.6A 4DSBGA

DatasheetCSD25213W10

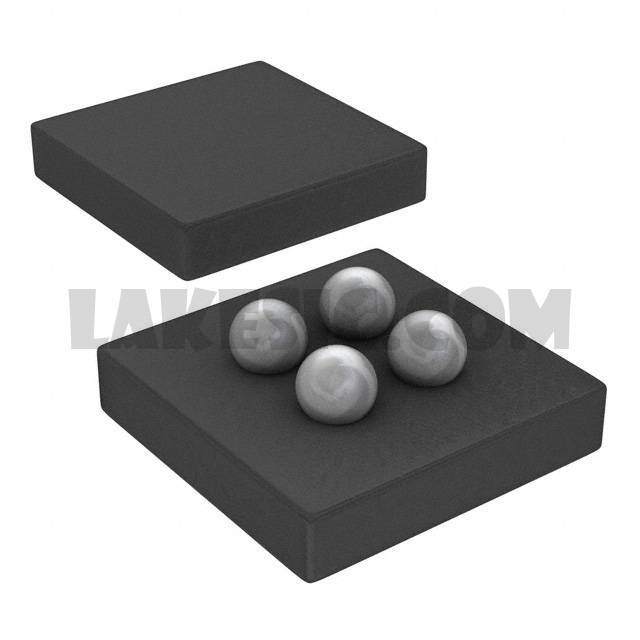

Package / Case4-UFBGA, DSBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 1.6A (Ta) 1W (Ta) Surface Mount 4-DSBGA (1x1)

To learn about the specification of CSD25213W10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD25213W10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD25213W10.
We are offering CSD25213W10 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD25213W10 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD25213W10
Standard Package	3000
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 4.5V
Rds On (Max) @ Id, Vgs	47mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	2.9nC @ 4.5V
Vgs (Max)	-6V
Input Capacitance (Ciss) (Max) @ Vds	478pF @ 10V
FET Feature	-
Power Dissipation (Max)	1W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-DSBGA (1x1)
Package / Case	4-UFBGA, DSBGA
