CSD25485F5T

CSD25485F5T

Part NumberCSD25485F5T

ManufacturerTexas Instruments

DescriptionCSD25485F5T

DatasheetCSD25485F5 Datasheet

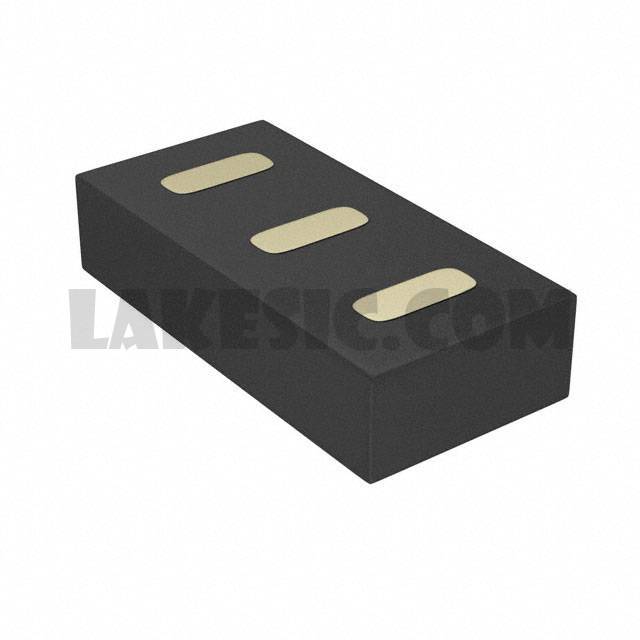

Package / Case3-XFDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 5.3A (Ta) 1.4W (Ta) Surface Mount 3-PICOSTAR

To learn about the specification of CSD25485F5T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD25485F5T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD25485F5T.
We are offering CSD25485F5T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD25485F5T - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD25485F5 Datasheet
Standard Package	1
Manufacturer	Texas Instruments
Series	FemtoFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 8V
Rds On (Max) @ Id, Vgs	35mOhm @ 900mA, 8V
Vgs(th) (Max) @ Id	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	3.5nC @ 4.5V
Vgs (Max)	-12V
Input Capacitance (Ciss) (Max) @ Vds	533pF @ 10V
FET Feature	-
Power Dissipation (Max)	1.4W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	3-PICOSTAR
Package / Case	3-XFDFN
