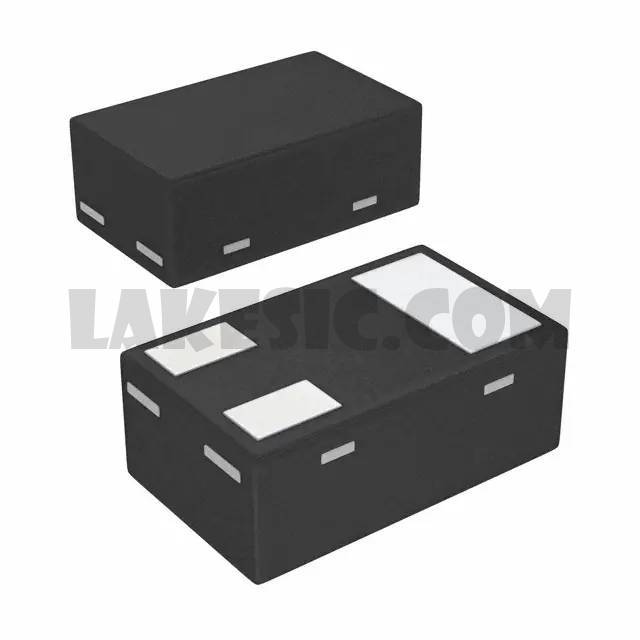

SSM3J56ACT,L3F

SSM3J56ACT,L3F

Part NumberSSM3J56ACT,L3F

ManufacturerToshiba Semiconductor and Storage

DescriptionMOSFET P-CH 20V 1.4A CST3

DatasheetSSM3J56ACT

Package / CaseSC-101, SOT-883

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 1.4A (Ta) 500mW (Ta) Surface Mount CST3

To learn about the specification of SSM3J56ACT,L3F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add SSM3J56ACT,L3F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of SSM3J56ACT,L3F.
We are offering SSM3J56ACT,L3F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

SSM3J56ACT,L3F - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	SSM3J56ACT
Standard Package	10000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSVI
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.2V, 4.5V
Rds On (Max) @ Id, Vgs	390mOhm @ 800mA, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	1.6nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	100pF @ 10V
FET Feature	-
Power Dissipation (Max)	500mW (Ta)
Operating Temperature	150°C
Mounting Type	Surface Mount
Supplier Device Package	CST3
Package / Case	SC-101, SOT-883
