NTLJS3113PT1G

NTLJS3113PT1G

Part NumberNTLJS3113PT1G

ManufacturerON Semiconductor

DescriptionMOSFET P-CH 20V 3.5A 6WDFN

DatasheetNTLJS3113P

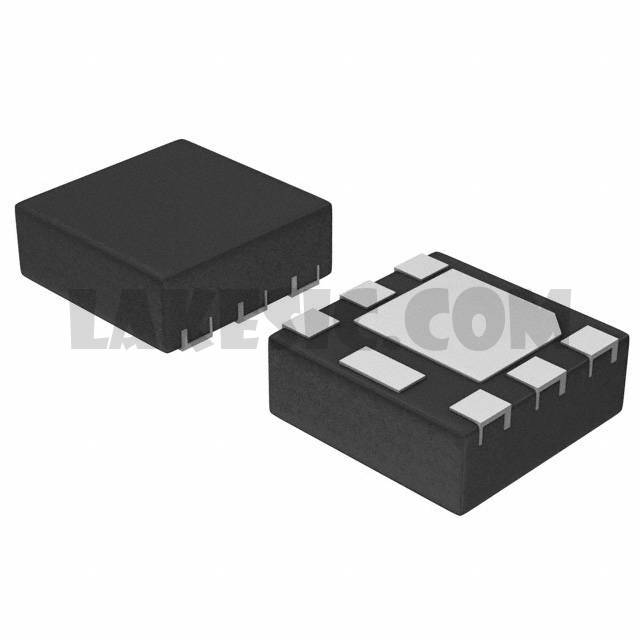

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 20V 3.5A (Ta) 700mW (Ta) Surface Mount 6-WDFN (2x2)

To learn about the specification of NTLJS3113PT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NTLJS3113PT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NTLJS3113PT1G.
We are offering NTLJS3113PT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NTLJS3113PT1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	NTLJS3113P
Standard Package	1
Manufacturer	ON Semiconductor
Series	µCool™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.5V, 4.5V
Rds On (Max) @ Id, Vgs	40mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.7nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1329pF @ 16V
FET Feature	-
Power Dissipation (Max)	700mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	6-WDFN (2x2)
Package / Case	6-WDFN Exposed Pad
