CSD85312Q3E

CSD85312Q3E

Part NumberCSD85312Q3E

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH 20V 39A 8VSON

DatasheetCSD85312Q3E

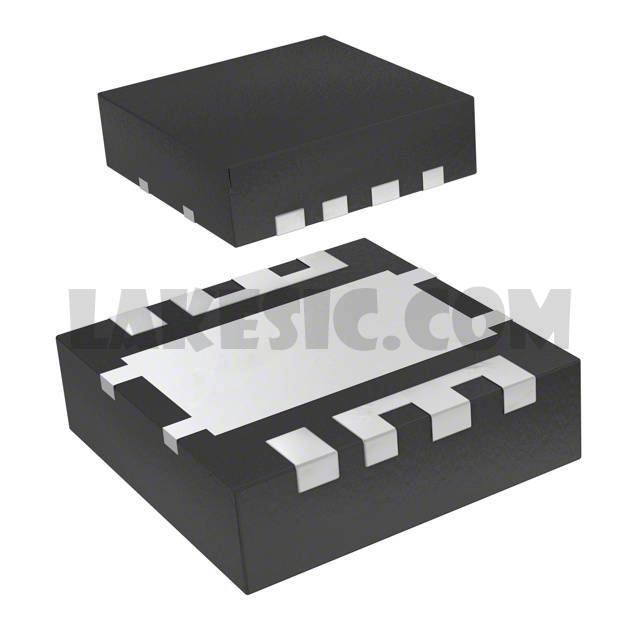

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) Common Source 20V 39A 2.5W Surface Mount 8-VSON (3.3x3.3)

To learn about the specification of CSD85312Q3E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD85312Q3E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD85312Q3E.
We are offering CSD85312Q3E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD85312Q3E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD85312Q3E
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual) Common Source
FET Feature	Logic Level Gate, 5V Drive
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	39A
Rds On (Max) @ Id, Vgs	12.4mOhm @ 10A, 8V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	15.2nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	2390pF @ 10V
Power - Max	2.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerVDFN
Supplier Device Package	8-VSON (3.3x3.3)
