CSD86311W1723

CSD86311W1723

Part NumberCSD86311W1723

ManufacturerTexas Instruments

DescriptionMOSFET 2N-CH 25V 4.5A 12DSBGA

DatasheetCSD86311W1723

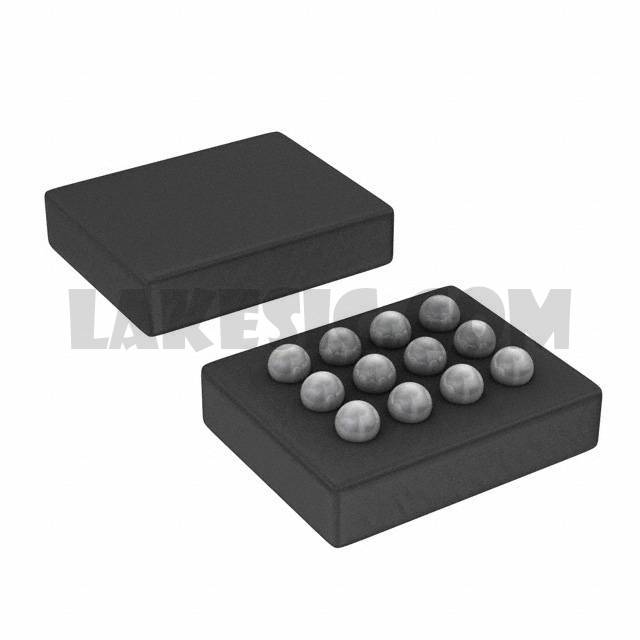

Package / Case12-UFBGA, DSBGA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 25V 4.5A 1.5W Surface Mount 12-DSBGA

To learn about the specification of CSD86311W1723, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD86311W1723 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD86311W1723.
We are offering CSD86311W1723 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD86311W1723 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	CSD86311W1723
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	4.5A
Rds On (Max) @ Id, Vgs	39mOhm @ 2A, 8V
Vgs(th) (Max) @ Id	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	585pF @ 12.5V
Power - Max	1.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-UFBGA, DSBGA
Supplier Device Package	12-DSBGA
Base Part Number	CSD86311
